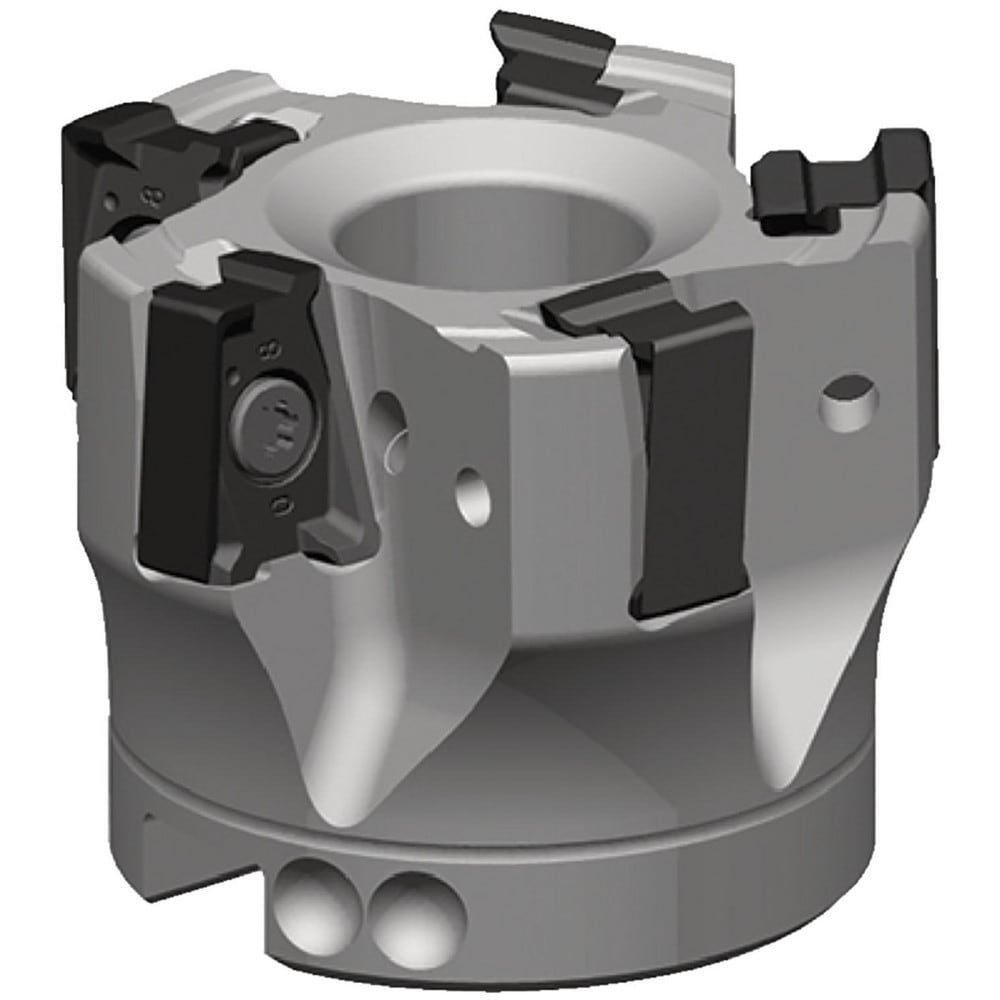

Brand: Widia / Part #: 5710593

Brand: Widia / Part #: 5710593


Item #: 36425189
Brand: Widia
Model #: 5710593

Product Specifications

Minimum Cutting Diameter (mm) 63.00
Maximum Cutting Diameter (mm) 63.00
Maximum Depth of Cut (mm) 15.00
Arbor Hole Diameter (mm) 22.00
Compatible Insert Size Code XNGU15T6..
Maximum Ramping Angle 0
Cutter Style VSM
Cutting Direction Right Hand
Insert Holding Method Screw
Lead Angle 90
Rake Negative (Axial); Negative (Radial)
Rake Angle -13.700
Series VSM490
Maximum Body Diameter (mm) 60.51
Overall Height (Mm - 5 Decimals) 40.00000
Keyway Width (mm) 10.48
Hub Diameter (mm) 50.000
Maximum RPM 14200.000
Tool Application Milling; Slotting
Tool Performance General Purpose
Primary Workpiece Material Universal
Number of Adjustable Pockets 0
ISO Number VSM490D063Z05S22XN15
Coolant Hole Diameter (Decimal Inch) 0.1180
Complete Insert Compatibility XNGU15T608SRMM
Toolholder Material Steel
Manufacturers Catalog Number VSM490D063Z05S22XN15
Coolant Through Yes
Number Of Cutter Inserts 5
Number Of Flutes 5
$437.79
