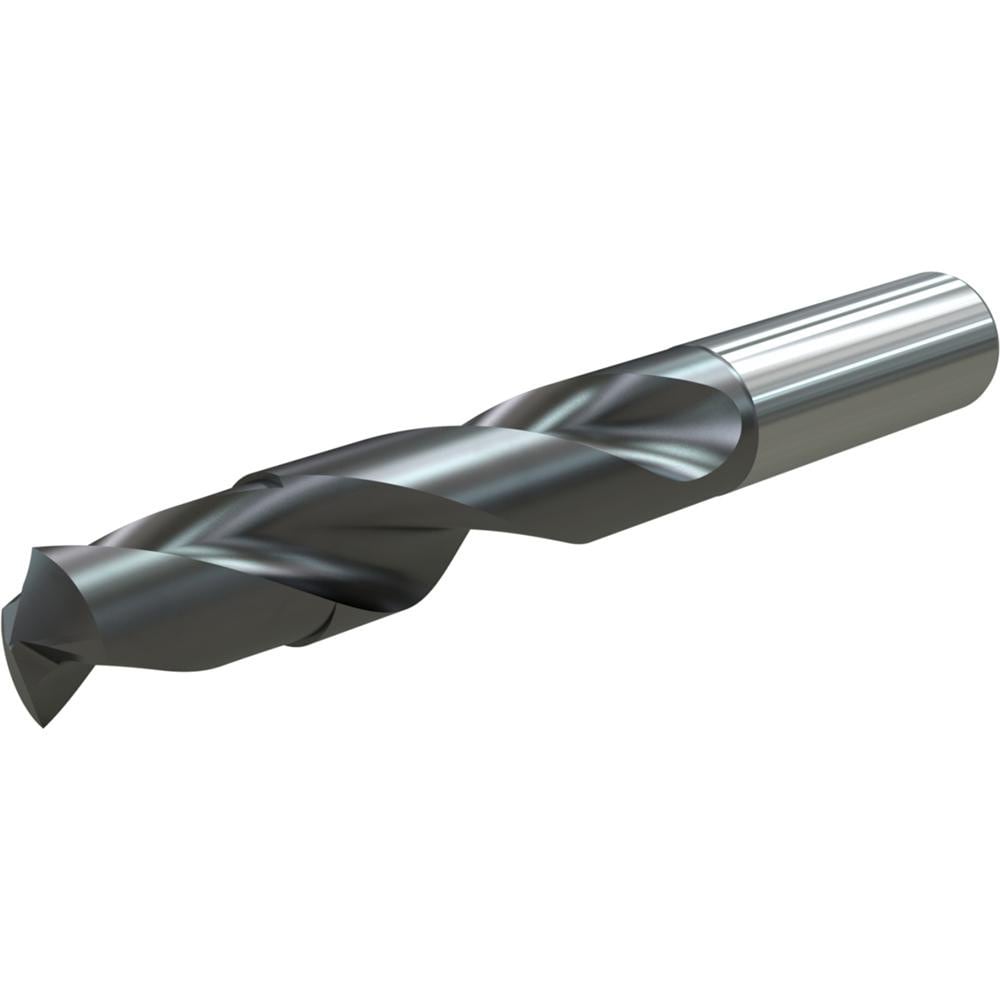

Brand: Widia / Part #: 4142830
Item #: 94796935
Brand: Widia
Model #: 4142830
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.7500 |
| Drill Bit Size (Inch) | 3/4 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length (Decimal Inch) | 6.0200 |
| Flute Length (Decimal Inch) | 3.9800 |
| Series | VDS402 |
| Tool Application | Drilling |
| Flute Length x Diamter Ratio | 4 |
| Flute By Diameter Ratio | 4xD |
| Maximum Drilling Depth (Decimal Inch) | 3.0300 |
| Shank Length (Decimal Inch) | 1.9700 |
| Number of Flats | 2 |
| Drill Point Length (Decimal Inch) | 0.1300 |
| Drill Bit Diameter Tolerance | -0.000800 to 0.000000 in |
| Tool Performance | General Purpose |
| Double Margin | No |
| Drill Bit Grade | WU25PD |
| Material Grade | WU25PD |
