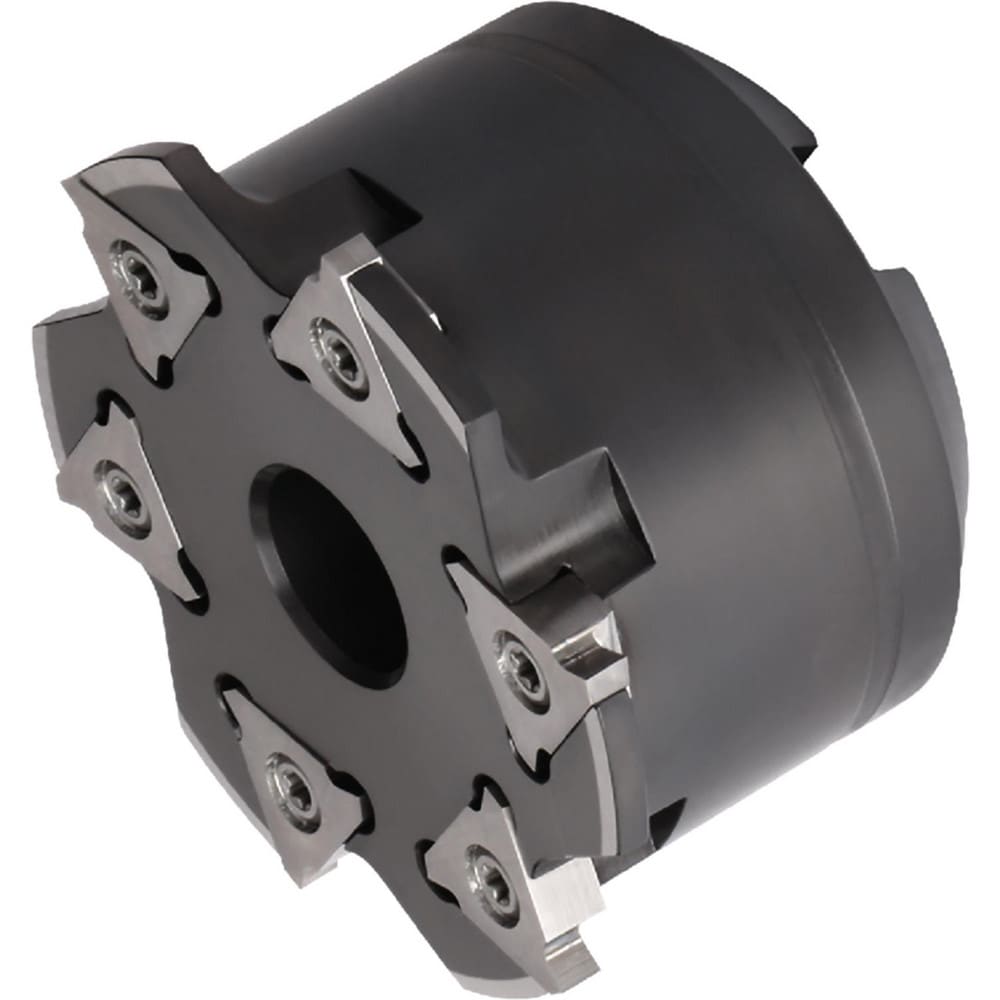

Brand: Widia / Part #: 2022621
Item #: 99761090
Brand: Widia
Model #: 2022621
Product Specifications
| Connection Type | Shell Mount |
| Cutting Width (mm) | 4.26 |
| Maximum Depth of Cut (mm) | 4.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 22.0000 |
| Cutter Diameter (mm) | 62.99 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 6 |
| Compatible Insert Style | TNAX |
| Compatible Insert Size Code | 1604 |
| Staggered Tooth | No |
| Tooth Type | Straight |
| Rake | Positive |
| Tool Material | Steel |
| Series | M94 |
| Toolholder Style | M94 |
| Hub Diameter (mm) | 54.990 |
| Tool Application | Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Minimum Cutting Width (Decimal Inch) | 0.1677 |
| Maximum Cutting Width (mm) | 4.26 |
| Minimum Cutting Diameter (mm) | 62.99 |
| Lead Angle | 90 |
| Maximum Body Diameter (mm) | 62.99 |
| Cutter Body Width (mm) | 108.20 |
| Weldon Flat | No |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Overall Length (mm) | 40.0000 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Number Of Teeth | 6 |
| Coolant Through | No |
| Complete Insert Compatibility | TNAX |
| Coating/Finish | Black Oxide |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
