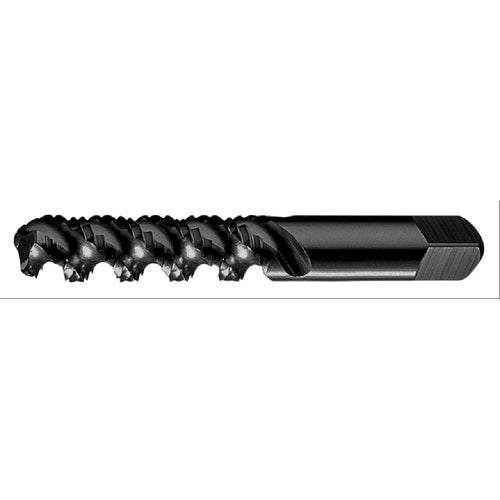

M10X1 3F D11 SPFL SEMIBOT
Item #: CL71313596
Brand: Greenfield Threading
Model #: 313596
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Cutting Edge Material | HSS |
| Thread Pitch (TP) | 1 mm |
| Thread Tolerance Class (TCTR) | D11 |
| Thread Standard | Metric |
| Chamfer | Semi-Bottoming |
| Overall Length (OAL) | 2-15/16″ |
| Coating | Steam Oxide |
| Usable Length (LU) | 3/4″ |
| ToolTypeName | Spiral Flute Taps |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Series/List # | SFGP+5-SO |
| Applicable Material | Steel | Cast Iron |
