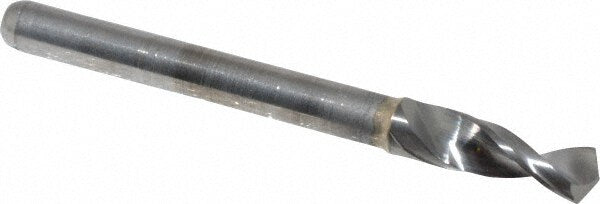

Brand: Kyocera / Part #: 155-1405.500
Item #: 00902288
Brand: Kyocera
Model #: 155-1405.500
Product Specifications
| Drill Bit Size (Wire) | #28 |
| Drill Bit Size (Decimal Inch) | 0.1405 |
| Drill Bit Size (mm) | 3.57 |
| Drill Point Angle | 130 |
| Tool Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (mm) | 3.18 |
| Flute Length (Inch) | 1/2 |
| Flute Length (mm) | 12.70 |
| Flute Length (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Spiral Type | Regular |
| Series | 155 |
| Web Configuration | Tapered |
| Cutting Direction | Right Hand |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0003 to +0.0000 |
| Material Application | Aluminum; Stainless Steel; Cast Iron; Cobalt Alloy; Titanium; Nickel; Plastic; Copper Alloy; Fiber-Reinforced Plastic |
| Coating/Finish | Bright Polished |
