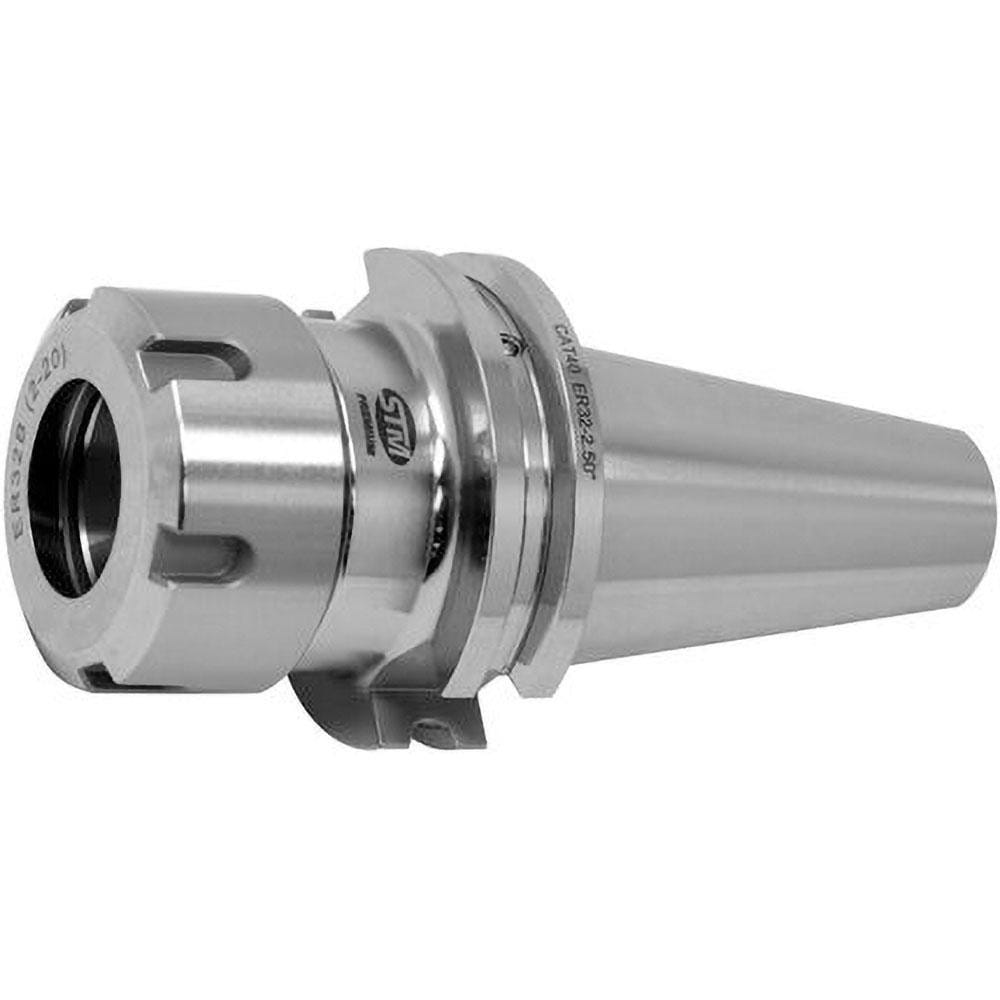

Brand: STM Premium / Part #: 525456
Item #: 62392808
Brand: STM Premium
Model #: 525456
Product Specifications
| Collet Series | ER32 |
| Shank Type | CAT Taper |
| Projection (Decimal Inch) | 7.3400 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0780 |
| Maximum Collet Capacity (Inch) | 1.97 |
| Overall Length (Decimal Inch) | 8.6800 |
| Actuator Type | Wrench |
| Dual Contact | No |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.9700 |
| Shank Diameter (Decimal Inch) | 2.75 |
| Shank Length (Decimal Inch) | 4.0000 |
| TIR (Decimal Inch) | 0.000200 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.9700 |
| Hex Diameter (Decimal Inch) | 50.0000 |
| Locknut Diameter (Decimal Inch) | 0.9039 |
| Head Length (Decimal Inch) | 1.3400 |
| Balanced To Rpm | 15000 |
| Thread Size (mm) | M40x1.5 |
