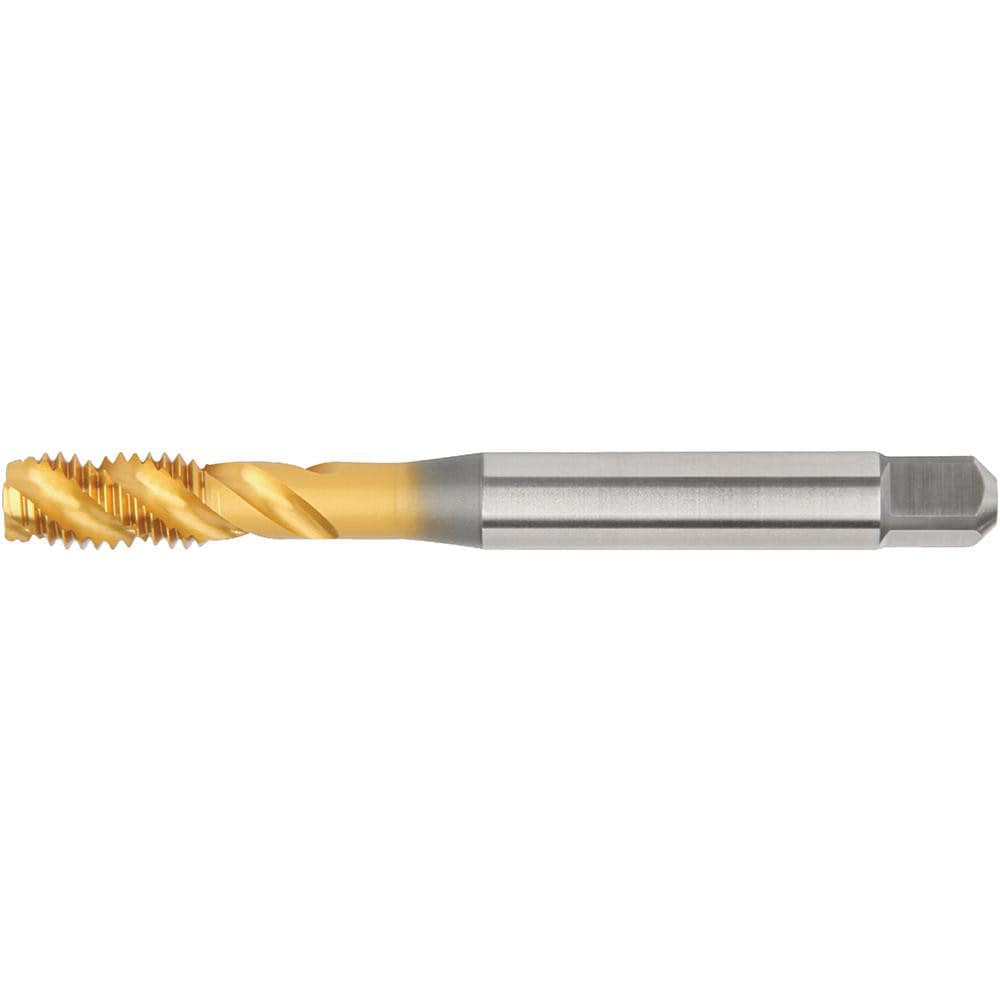

Brand: Widia / Part #: 6172960
Item #: 97463350
Brand: Widia
Model #: 6172960
Product Specifications
| Thread Size (Inch) | 1-1/2-6 |
| Chamfer | Modified Bottoming |
| Thread Limit | H8 |
| Class Of Fit | 2B |
| Number Of Flutes | 4 |
| Material | High Speed Steel |
| Threads per Inch | 6 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiCN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 1.5700 |
| Overall Length (Decimal Inch) | 7.8700 |
| Thread Depth (Decimal Inch) | 3.9400 |
| Thread Pitch (Decimal Inch) | 0.1667 |
| Thread Standard | UNC |
| Material Grade | WU41EG |
| Shank Diameter (Decimal Inch) | 1.1024 |
| Square Size (Decimal Inch) | 0.8660 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VTSFT-TC |
