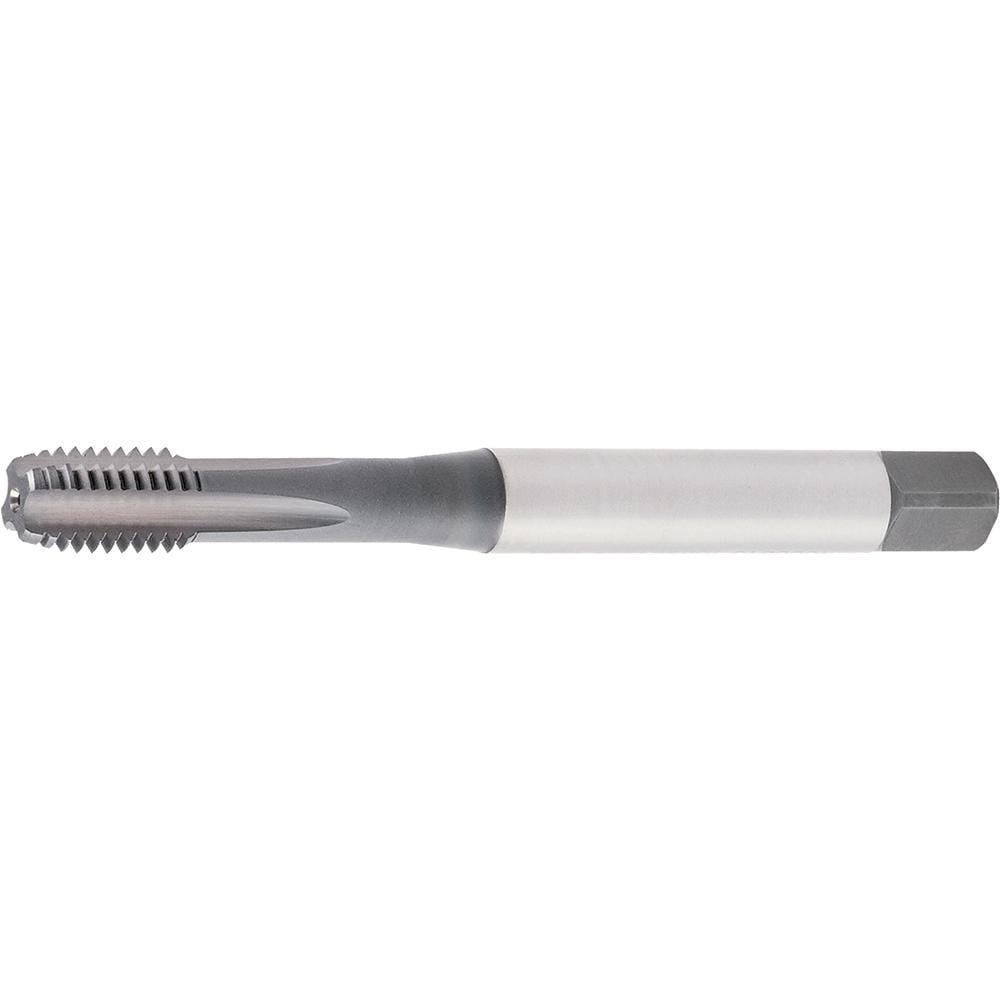

Brand: Widia / Part #: 5408407
Item #: 85349967
Brand: Widia
Model #: 5408407
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | M20x2.5 |
| Class Of Fit | 6HX |
| Number Of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Threads per Inch | 10.1600 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric |
| Overall Length (mm) | 140.00 |
| Thread Pitch (mm) | 2.50 |
| Thread Length (mm) | 25.00 |
| Material Grade | WU32MG |
| Thread Depth (mm) | 25.00 |
| Application | Metal |
| Shank Diameter (mm) | 16.00 |
| Tapping Depth (mm) | 64.00 |
| Square Length (mm) | 15.00 |
| Square Size (mm) | 12.00 |
| Material Application | Cast Iron |
| Series | GT43 |
| Shank Length (mm) | 76.00 |
| Shank Length (Decimal Inch) | 4.5276 |
