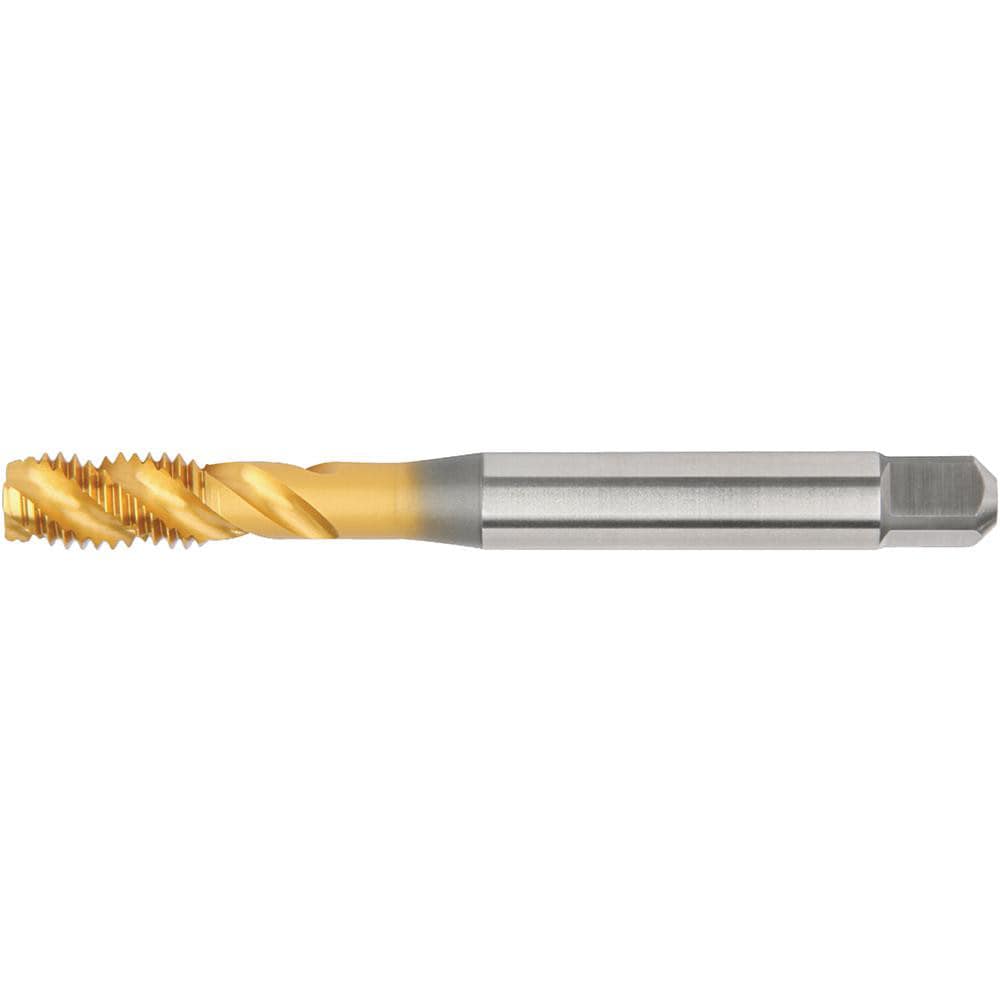

Brand: Widia / Part #: 6172501
Item #: 97430235
Brand: Widia
Model #: 6172501
Product Specifications
| Thread Size (mm) | M12x1.25 |
| Chamfer | Modified Bottoming |
| Thread Limit | D5 |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Black Oxide |
| Thread Depth (mm) | 50.00 |
| Coolant Through | No |
| Thread Length (mm) | 13.00 |
| Overall Length (mm) | 100.0000 |
| Thread Pitch (mm) | 1.25 |
| Thread Standard | Metric |
| Material Grade | WP49EG |
| Shank Diameter (mm) | 9.0000 |
| Square Length (mm) | 10.00 |
| Square Size (mm) | 7.00 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT-TC |
