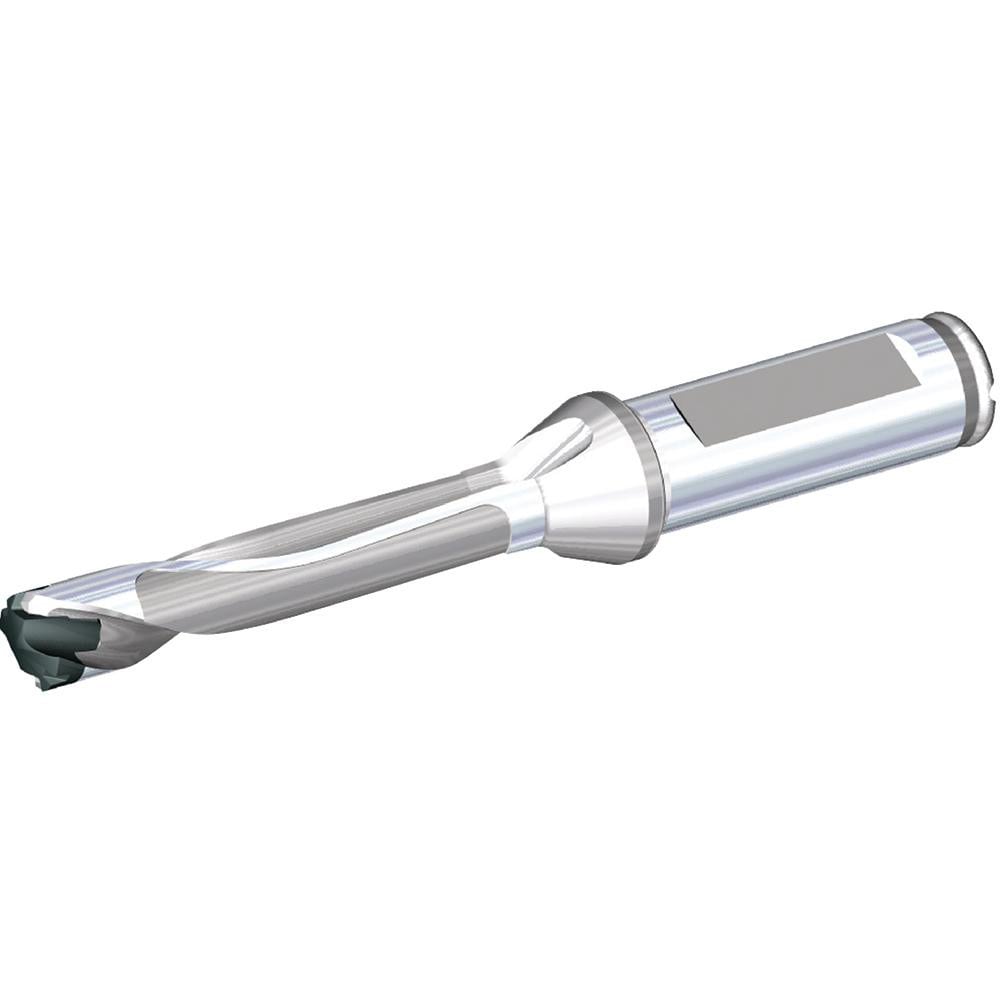

Brand: Widia / Part #: 4099038

Brand: Widia / Part #: 4099038


Item #: 90435652
Brand: Widia
Model #: 4099038

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.4331
Maximum Drill Diameter (Decimal Inch) 0.4524
Drill Depth by Diameter Ratio 5xD
Maximum Drill Depth (Decimal Inch) 2.2640
Shank Type Flatted
Insert Style TDM
Shank Diameter (Inch) 5/8
Shank Diameter (Decimal Inch) 0.6250
Insert Seat Size W16
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W16
Overall Length (Decimal Inch) 5.0148
Overall Length (Inch) 5-1/64
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 2.9085
Body Length (Decimal Inch) 2.9004
Shank Length (Decimal Inch) 1.8898
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.0791
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$252.59
