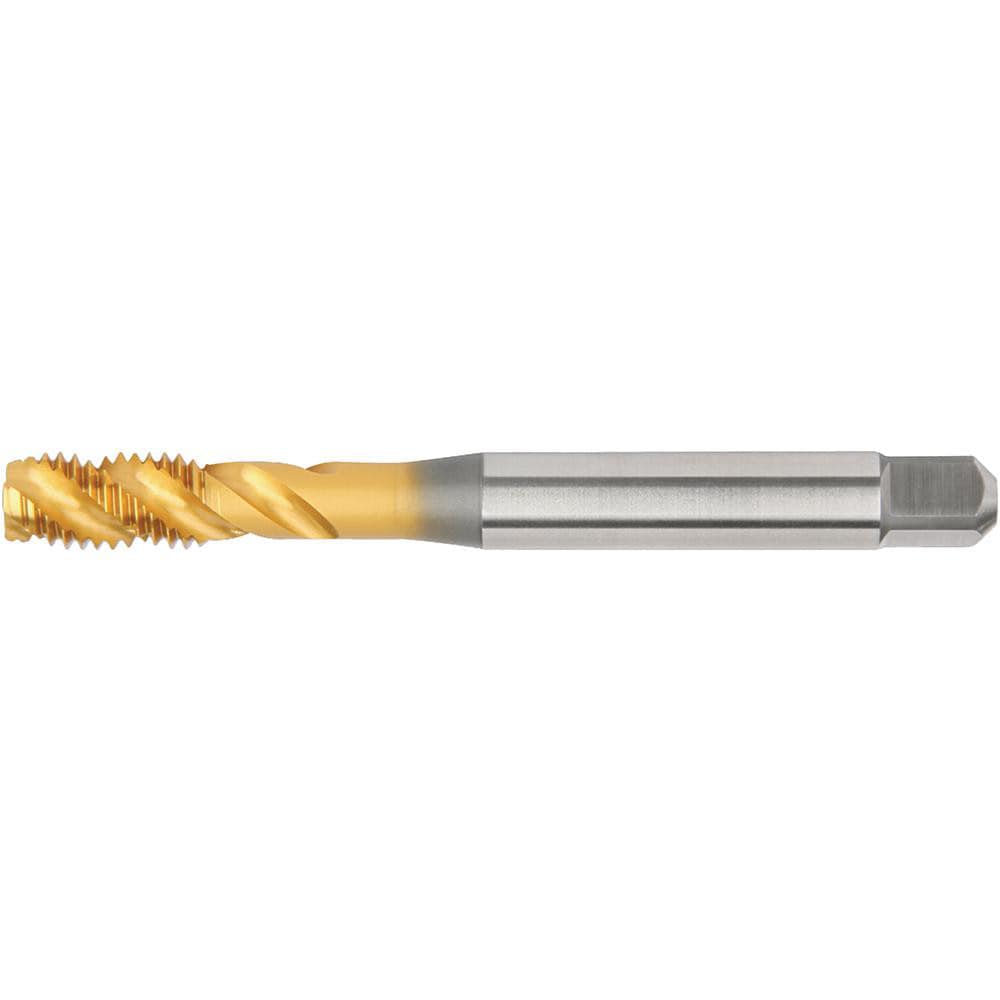

Brand: Widia / Part #: 5387679
Item #: 91923672
Brand: Widia
Model #: 5387679
Product Specifications
| Thread Size (Inch) | 7/8-9 |
| Number Of Flutes | 4 |
| Chamfer | Semi-Bottoming |
| Thread Limit | 2B |
| Class Of Fit | 2B |
| Coating/Finish | Black Oxide |
| Threads per Inch | 9 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 1.3800 |
| Thread Pitch (Decimal Inch) | 0.1111 |
| Thread Standard | UNC |
| Material Grade | WP49EG |
| Thread Length (Decimal Inch) | 1.3400 |
| Overall Length (Decimal Inch) | 5.5100 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Square Size (Decimal Inch) | 0.5710 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VT-SFT |
