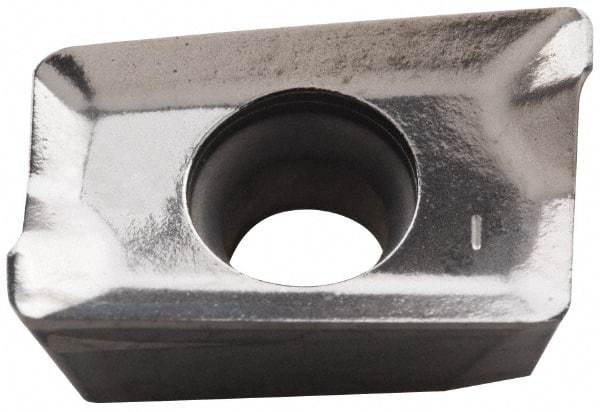

Iscar - ADCR1505 P Grade IC28 Carbide Milling Insert - Uncoated, 0.222" Thick, 0.8mm Corner Radius
Item #: 99812125
Brand: Iscar
Model #: 5690893
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADCR |
| Insert Size | 1505 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.3740 |
| Length (Decimal Inch) | 0.5709 |
| Thickness (Decimal Inch) | 0.2220 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Rake | Positive |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | P |
| ISO Number | ADCR 1505PDFR-P |
