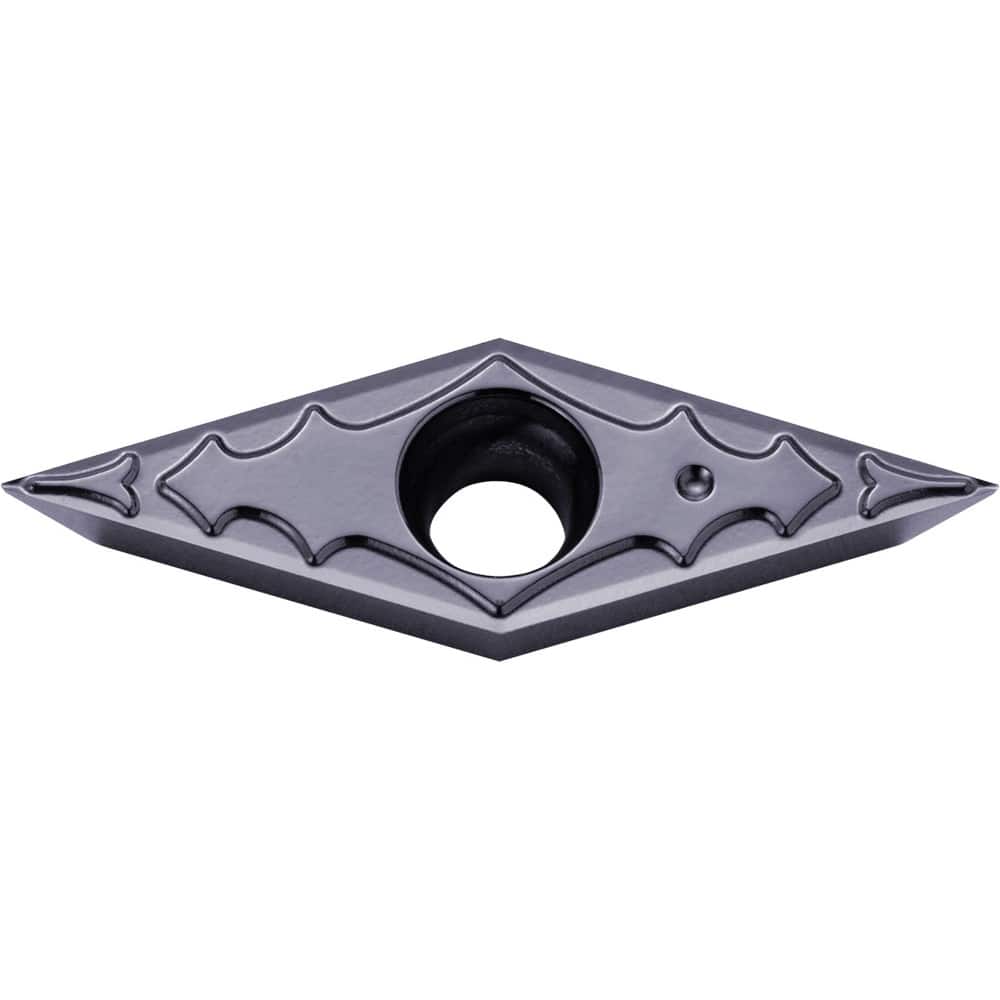

Turning Insert: VPGT110302MP-CF PR1535, Megacoat Nano Finish, Neutral, 1/4″ Inscribed Circle, 0.0079″ Corner Radius, 35.0 ° N/A Diamond,
Item #: 99634297
Brand: Kyocera
Model #: TLC08021
Product Specifications
| Insert Style | VPGT |
| Insert Size Code | 2205 |
| Insert Shape | Diamond |
| Manufacturer Grade | PR1535 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35.0 |
| Relief Angle | 11 |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | S; M |
| Manufacturers Catalog Number | VPGT2205MPCFPR1535 |
| Multi-Use Tool | Yes |
| Coating/Finish | Megacoat Nano |
| Multi-Use Application | External Turning; Back Boring; Facing; Copying; Profiling; Undercutting; Internal Facing |
