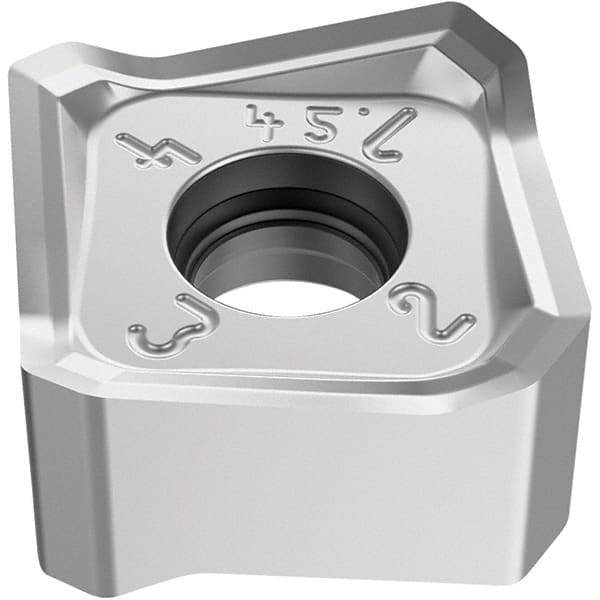

Seco - SNHX1407 ME10 Grade H25 Carbide Milling Insert - Uncoated, 6.59mm Thick, 14mm Inscribed Circle
Item #: 99136764
Brand: Seco
Model #: 03213545
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNHX |
| Insert Size | 1407 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | H25 |
| Coating | Uncoated |
| Width (mm) | 14.00 |
| Length (mm) | 14.00 |
| Inscribed Circle (mm) | 14.00 |
| Thickness (mm) | 6.59 |
| Corner Radius (mm) | 0.00 |
| Hole Diameter (mm) | 5.04 |
| Relief Angle | 0.000 |
| Rake Angle | 20 |
| Rake | Negative |
| Coating Process | Uncoated |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | ME10 |
| Cutting Edge Style | Honed |
