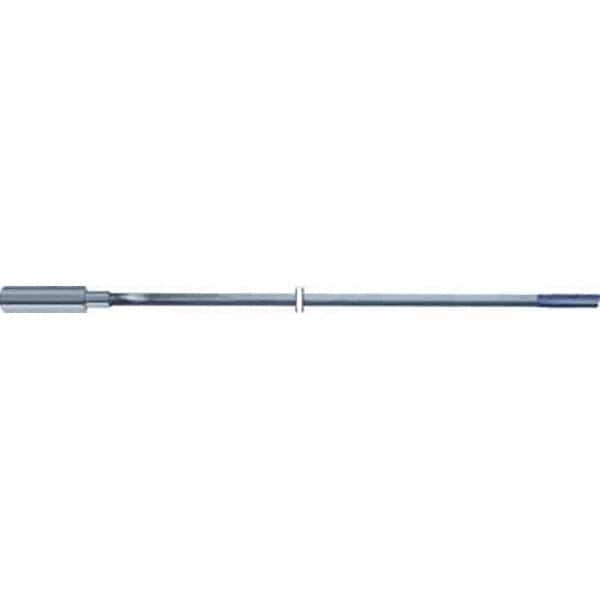

Die Drill Bit: 9/64″ Dia, Solid Carbide nano-A Finish, Series 5646
Item #: 98693724
Brand: Guhring
Model #: 9056460035700
Product Specifications
| DrillType | Single Flute Gun |
| Drill Size (Wire) | #28 |
| Drill Size (Decimal) | 0.1406; 3.57 mm; 0.1406 in |
| Drill Size (Inch) | 9/64 |
| Drill Size (Metric) | 3.57 |
| Drill/Shank Material | Solid Carbide |
| Flute Length (Metric) | 120.00 |
| Flute Length (Inch) | 120.0 mm |
| Depth of Cut (Metric) | 114.64 |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Kidney |
| Shank Diameter (Inch) | 6.0 mm |
| Shank Diameter (Metric) | 6.00 |
| Shank Diameter (Decimal) | 6.0 mm |
| Shank Length (Metric) | 40.00; 40.0 mm |
| Point Type | Standard |
| OverallLength (Decimal) | 160.0 mm |
| Overall Length (Metric) | 160.00 |
| Finish/Coating | nano-A (Tip) |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance (Metric) | h5 |
| Flute Length x Diameter Ratio | 25xD |
| Drill Bit Grade | High Performance |
| Series/List | 5646 |
