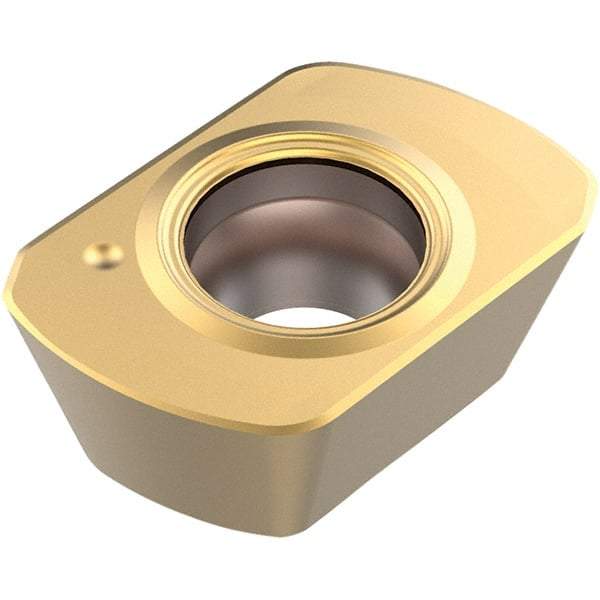

Seco - LPHW09T4420 D12 Grade MH1000 Carbide Milling Insert - TiAlN Finish, 3/16" Thick, 9.5mm Inscribed Circle
Item #: 98571649
Brand: Seco
Model #: 03212675
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LPHW |
| Insert Size | 09T4420 |
| Material | Carbide |
| Material Grade | Ultrafine Grain |
| Manufacturer's Grade | MH1000 |
| Coating | TiAlN |
| Width (mm) | 9.50 |
| Length (mm) | 14.00 |
| Inscribed Circle (mm) | 9.50 |
| Thickness (Inch) | 3/16 |
| Hole Diameter (mm) | 4.50 |
| Convex Radius (Decimal Inch) | 0.3839 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | D12 |
| Maximum Depth of Cut (Decimal Inch) | 0.0700 |
| Cutting Edge Style | Chamfered & Honed |
