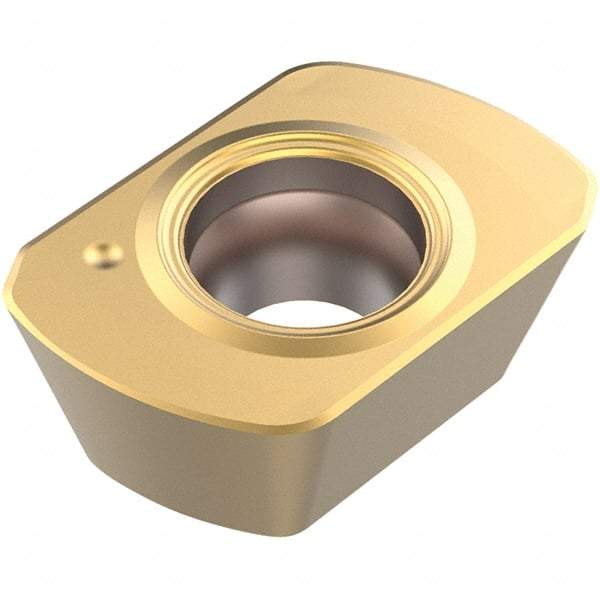

Seco - LPKW09T4420 D15 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 3/16" Thick, 9.5mm Inscribed Circle
Item #: 98571615
Brand: Seco
Model #: 03212676
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LPKW |
| Insert Size | 09T4420 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Width (mm) | 9.50 |
| Length (mm) | 14.00 |
| Inscribed Circle (mm) | 9.50 |
| Thickness (Inch) | 3/16 |
| Hole Diameter (mm) | 4.50 |
| Convex Radius (Decimal Inch) | 0.3839 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | D15 |
| Maximum Depth of Cut (Decimal Inch) | 0.0700 |
| Cutting Edge Style | Chamfered & Honed |
