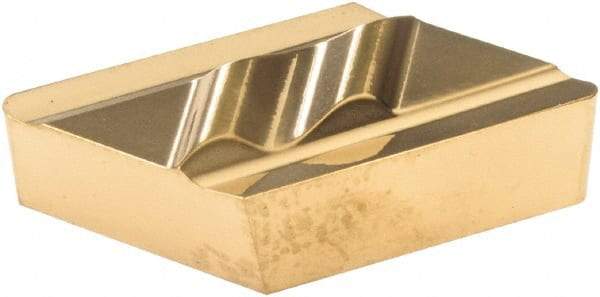

Tool-Flo - FLPL132, GP50 Grade Carbide Profiling Insert - TiN Finish, 55° Incl Angle, Parallelogram, 3/16" Thick, 0.031" Corner Radius
Item #: 98439854
Brand: Tool-Flo
Model #: 641132FN4C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | FLPL |
| Insert Size | 132 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | GP50 |
| Width (Decimal Inch) | 0.3750 |
| Width (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 8 |
| Coating | TiN |
| Insert Length (Decimal Inch) | 0.5000 |
| Insert Length (Inch) | 1/2 |
| Coating Process | PVD |
| Chipbreaker | C |
| Included Angle | 55 |
| Insert Hand | Left Hand |
| Shape | Parallelogram |
