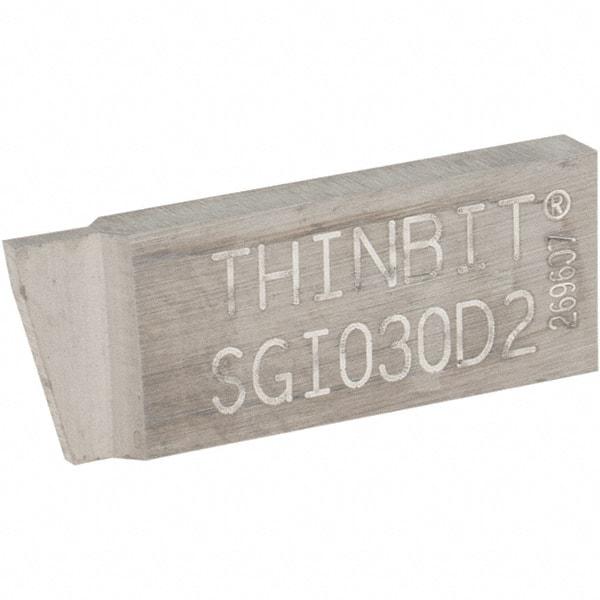

Thin Bit - 030SGI Grade Dura-Max 2000, 0.03" Cutting Width Carbide Grooving Insert - 0.09" Max Depth of Cut, Neutral, Uncoated
Item #: 97398937
Brand: Thin Bit
Model #: SGI030D2
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SGI |
| Insert Size | 030 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0300 |
| Maximum Depth of Cut (Decimal Inch) | 0.0900 |
| Material Grade | C4/C5 |
| Manufacturer's Grade | Dura-Max 2000 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.2400 |
| Lead Angle | 0 |
| Multi-Use Tool | No |
| Overall Length (Decimal Inch) | 0.6500 |
| Rake Angle | 0 |
| Rake | Neutral |
| Overall Width (Decimal Inch) | 0.0680 |
