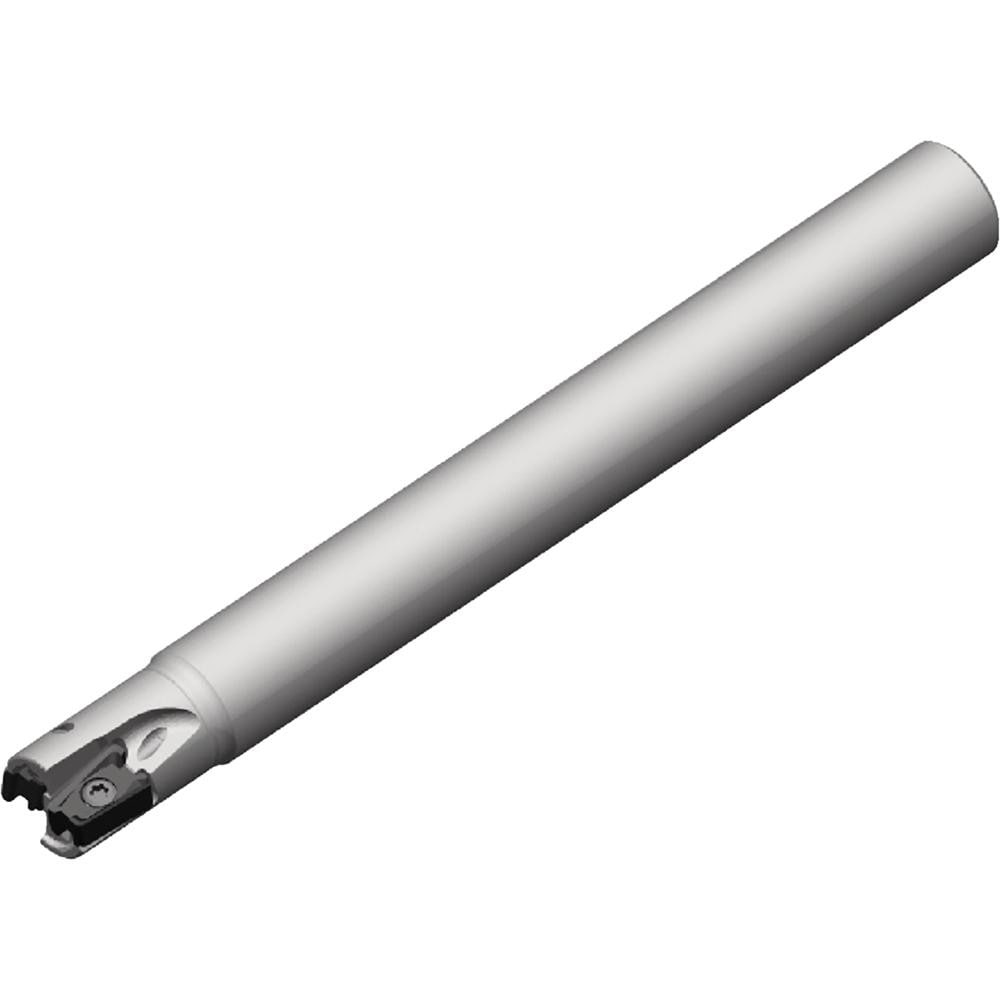

Indexable Square-Shoulder End Mill: 490D032Z04A25XN10L110, 32 mm Cut Dia, 25 mm Max Depth of Cut, 25 mm Dia Cylindrical Shank
Item #: 97477475
Brand: Widia
Model #: 6425514
Product Specifications
| Cutting Diameter (mm) | 32.00 |
| Overall Length (mm) | 110.00 |
| Maximum Depth of Cut (mm) | 25.00 |
| Cutter Style | VSM |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 0 |
| Tool Material | Steel |
| Series | VSM490-10 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (mm) | 78.00 |
| Head Length (mm) | 32.00 |
| Maximum RPM | 29200 |
| Tool Application | Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (mm) | 4.00 |
| Rake | Negative (Axial); Negative (Radial) |
| Complete Insert Compatibility | XNGU10.. |
| Insert Compatibility | XNGU10.. |
| Hand of Holder | Right Hand |
| Rake Angle | -15.4 (Radial),-8 (Axial) |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| ISO Number | VSM490D032Z04A25XN10L110 |
| Manufacturers Catalog Number | VSM490D032Z04A25XN10L110 |
| Usable Length (mm) | 32.00 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | China |
