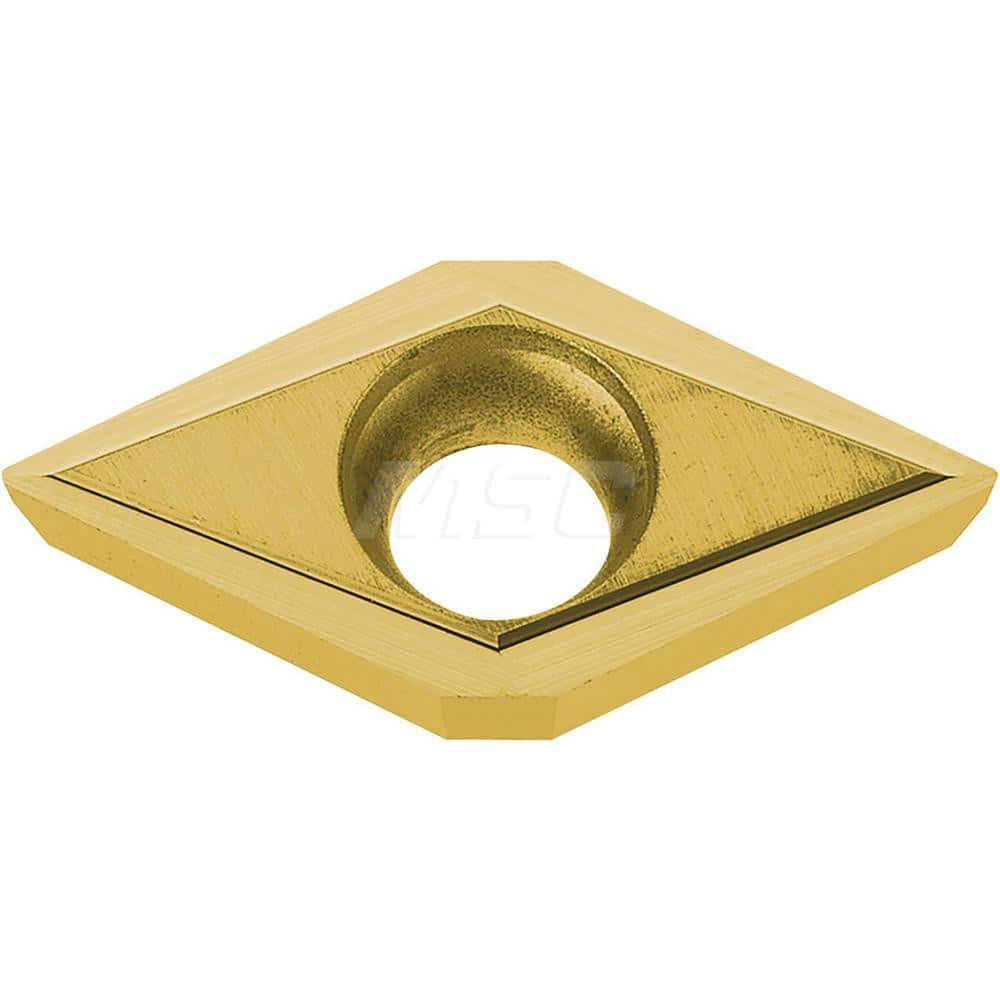

Kyocera DCGT 3251FNZ PV7020 Grade PVD Cermet, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (P) Carbon/Alloy Steel
Item #: 96051321
Brand: Kyocera
Model #: TJL60712
Product Specifications
| Insert Style | DCGT |
| Insert Shape Code | D |
| Insert Size Code | 3251 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Cermet |
| Manufacturer Grade | PV7020 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Rake | Positive |
| Primary Workpiece Material | P |
| Iso Code | DCGT11T304FN-Z |
| Manufacturers Catalog Number | DCGT3251FNZPV7020 |
| Chip Breaker | T |
| Style | DCGT |
| Full Radius | No |
| Coating/Finish | TiCN (Megacoat) |
| Multi-Use Application | External Turning; Back Boring; Copying; Sub-Spindle |
