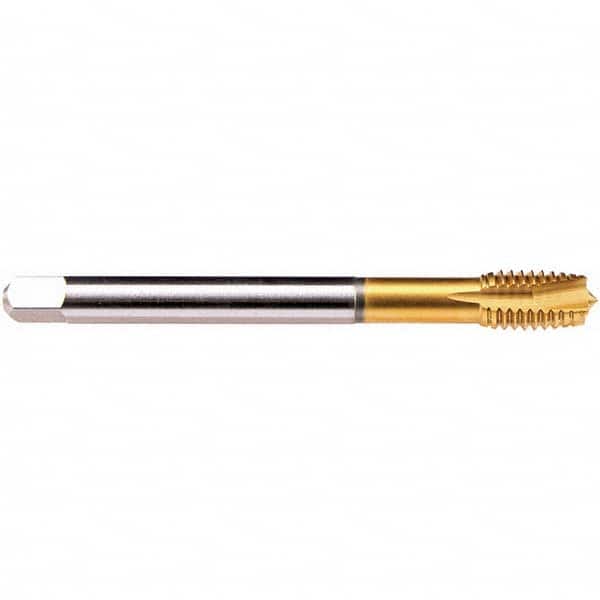

Emuge - 5/8-11 UNC 2BX 4 Flute TiN Finish PM Cobalt Spiral Point Tap
Item #: 95626560
Brand: Emuge
Model #: CW138F01.5015
Product Specifications
| Thread Size (Inch) | 5/8-11 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Class of Fit | 2BX |
| Thread Limit | H6 |
| Finish/Coating | TiN |
| Material | PM Cobalt |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 110.00 |
| Oversize | No |
| Thread Standard | UNC |
| Series/List | CW138F01 |
| Style | Spiral Point |
| Tapping Depth (Inch) | 1-7/8 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Size (Decimal Inch) | 0.3598 |
| Material Application | Stainless Steel; Steel |
| Material Application2 | Stainless Steel; Steel |
