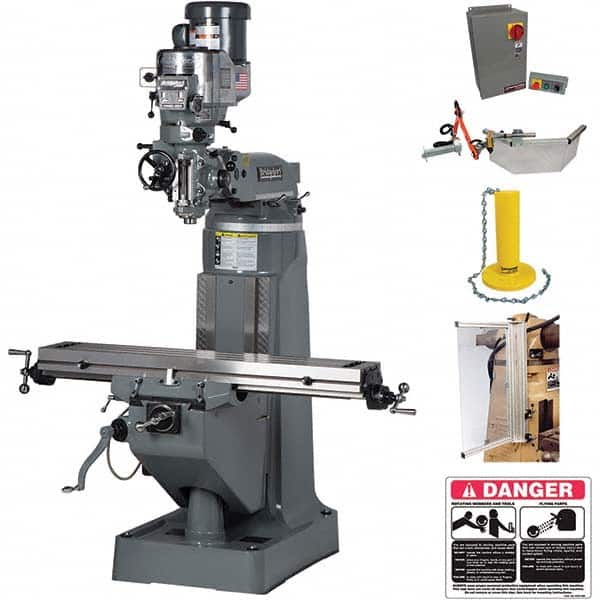

Knee Milling Machine: 6.75 x 18.75″, 2 hp, Variable Speed Pulley Control, 3 Phase 60 to 4,200 RPM, R8 Spindle Taper
Item #: 95487005
Brand: PRO-SAFE
Model #: 9046254/1037187
Product Specifications
| Minimum Spindle to Column Distance (Decimal Inch) | 6.7500 |
| Minimum Spindle to Column Distance (Inch) | 6-3/4 in |
| Minimum Spindle to Column Distance (mm) | 64.00 |
| Minimum Spindle to Table Distance (Decimal Inch) | 3.0000 |
| Minimum Spindle to Table Distance (Inch) | 3 |
| Maximum Spindle to Table Distance (Inch) | 18.2500 |
| Maximum Spindle to Table Distance (Decimal Inch) | 18.2500 |
| Minimum Spindle Speed | 60 RPM |
| Maximum Spindle Speed | 4200 RPM |
| Forward Head Tilt (Degrees) | 78 |
| Phase | 3 |
| Backward Head Tilt (Degrees) | 45 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Left-hand Head Tilt | 90.0 ? |
| Right-Hand Head Tilt (Degrees) | 90 |
| Right-hand Head Tilt | 90.0 ? |
| Cross Travel (Decimal Inch) | 12.0000 |
| Cross Travel | 12.0 in |
| Longitudinal Travel | 36.0 in |
| Longitudinal Travel (Decimal Inch) | 36.0000 |
| Knee Travel (Decimal Inch) | 16.0000 |
| Knee Travel | 16.0 in |
| Quill Diameter (Inch) | 3-3/8 |
| Quill Diameter (mm) | 85.73 |
| Quill Diameter (Decimal Inch) | 3.3750 |
| Horsepower | 2.00 |
| Table Load Capacity (Lb.) | 750.00 |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Ram Travel Length (Decimal Inch) | 12.0000 |
| Ram Travel Length (Inch) | 12 |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Taper Size | R8 |
| Spindle Travel Length (mm) | 127.00 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Number Of T-slots | 3 |
| Overall Height (Decimal Inch) | 86.0000 |
| Overall Height (Inch) | 86 |
| Overall Length (Inch) | 60 |
| Overall Length (Decimal Inch) | 60.0000 |
| Overall Depth (Inch) | 61 |
| Overall Depth (Inch) | 61.0000 |
| Includes | 230V 2HP Combo Disconnect/Starter; 13-3/4 x 13-3/4 in Front Interlock Mill Machine Shield; 5x6 in Danger Sign; 5 in Vertical Mill Drawbar Cover; 24 x 24 in Rear Shield Set |
| Maximum Spindle To Column Distance (Decimal Inch) | 18.7500 in |
| Maximum Spindle To Column Distance (Inch) | 18-3/4 |
 | |
| MSC Part # | 95487005 |
| Mfr Part # | 9046254/1037187 |
