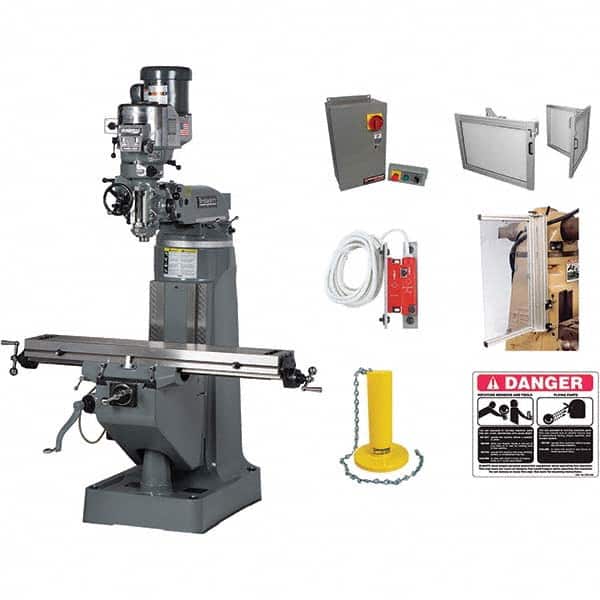

Knee Milling Machine: 6.75 x 18.75″, 2 hp, Variable Speed Pulley Control, 3 Phase 60 to 4,200 RPM, R8 Spindle Taper

Knee Milling Machine: 6.75 x 18.75″, 2 hp, Variable Speed Pulley Control, 3 Phase 60 to 4,200 RPM, R8 Spindle Taper


Item #: 95486932
Brand: PRO-SAFE
Model #: 9046264/1037187

Product Specifications

Minimum Spindle to Column Distance (Decimal Inch) 6.7500
Minimum Spindle to Column Distance (Inch) 6-3/4 in
Minimum Spindle to Column Distance (mm) 64.00
Minimum Spindle to Table Distance (Decimal Inch) 3.0000
Minimum Spindle to Table Distance (Inch) 3
Maximum Spindle to Table Distance (Inch) 18.2500
Maximum Spindle to Table Distance (Decimal Inch) 18.2500
Minimum Spindle Speed 60 RPM
Maximum Spindle Speed 4200 RPM
Forward Head Tilt (Degrees) 78
Phase 3
Backward Head Tilt (Degrees) 45
Left-Hand Head Tilt (Degrees) 90
Left-hand Head Tilt 90.0 ?
Right-Hand Head Tilt (Degrees) 90
Right-hand Head Tilt 90.0 ?
Cross Travel (Decimal Inch) 12.0000
Cross Travel 12.0 in
Longitudinal Travel 36.0 in
Longitudinal Travel (Decimal Inch) 36.0000
Knee Travel (Decimal Inch) 16.0000
Knee Travel 16.0 in
Quill Diameter (Inch) 3-3/8
Quill Diameter (mm) 85.73
Quill Diameter (Decimal Inch) 3.3750
Horsepower 2.00
Table Load Capacity (Lb.) 750.00
Table Length (Inch) 49
Table Width (Inch) 9
Ram Travel Length (Decimal Inch) 12.0000
Ram Travel Length (Inch) 12
Spindle Speed Control Variable Speed Pulley
Spindle Taper Size R8
Spindle Travel Length (mm) 127.00
Spindle Travel Length (Decimal Inch) 5.0000
Spindle Travel Length (Inch) 5
Number Of T-slots 3
Overall Height (Decimal Inch) 86.0000
Overall Height (Inch) 86
Overall Length (Inch) 60
Overall Length (Decimal Inch) 60.0000
Overall Depth (Inch) 61
Overall Depth (Inch) 61.0000
Includes 230V 2HP Combo Disconnect/Starter; 20 x 20 in Front Slide & Swing Aside Shield; 5 in Vertical Mill Drawbar Cover; 24 x 24 in Rear Shield Set; 24V Magnetic Safety Switch & Bracket; 5 x 6 in Danger Sign
Maximum Spindle To Column Distance (Decimal Inch) 18.7500 in
Maximum Spindle To Column Distance (Inch) 18-3/4
PRO-SAFE
MSC Part # 95486932
Mfr Part # 9046264/1037187
$36,261.31
