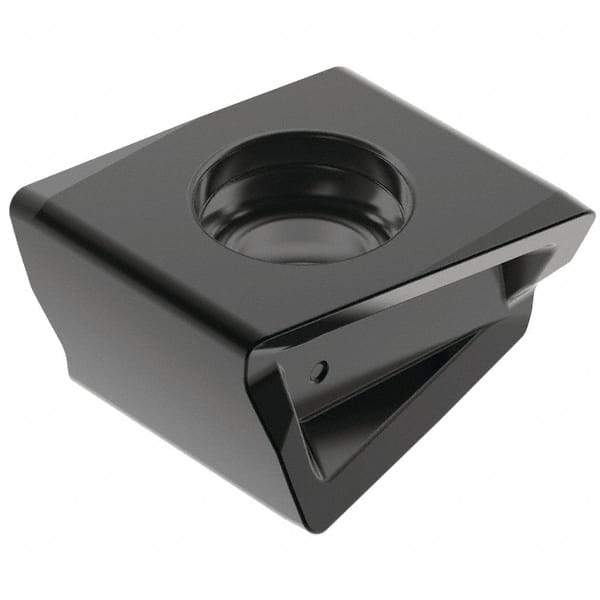

Kennametal - LNGQ120631 GE Grade KCPK30 Carbide Milling Insert - Al2O3 Coated, 1/4" Thick, 4.9mm Inscribed Circle
Item #: 94275955
Brand: Kennametal
Model #: 6525692
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNGQ |
| Insert Size | 120631 |
| Material | Carbide |
| Manufacturer's Grade | KCPK30 |
| Coating | Al2O3 |
| Width (mm) | 12.63 |
| Length (mm) | 13.00 |
| Inscribed Circle (mm) | 4.90 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Inch) | 1/8 |
| Primary Workpiece Material | P |
| Hole Diameter (mm) | 4.90 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | GE |
| Manufacturers Catalog Number | LNGQ120631ERGEKT4 |
