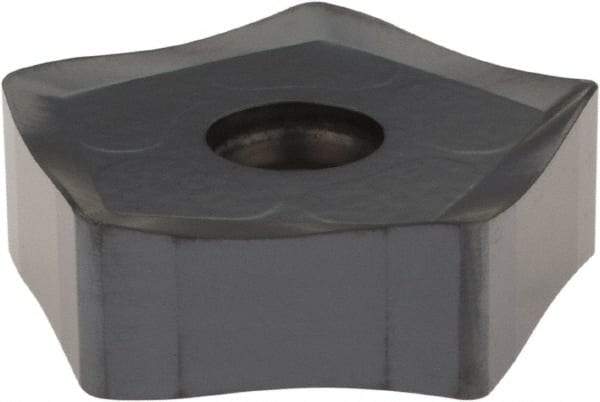

Ingersoll Cutting Tools - PNCU1708 Grade IN2030 Carbide Milling Insert - TiAlN Finish, 0.33" Thick, 0.925" Inscribed Circle, 0.06" Corner Radius
Item #: 93792612
Brand: Ingersoll Cutting Tools
Model #: 5812174
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PNCU |
| Insert Size | 1708 |
| Material | Carbide |
| Material Grade | C1/C5/C6 |
| Manufacturer's Grade | IN2030 |
| Coating | TiAlN |
| Length (Decimal Inch) | 0.9250 |
| Inscribed Circle (Decimal Inch) | 0.9250 |
| Thickness (Decimal Inch) | 0.3300 |
| Corner Radius (Decimal Inch) | 0.0600 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 108 |
| Shape | Pentagon |
| Insert Hand | Right Hand |
| ISO Number | PNCU1708GNTR IN2030 |
