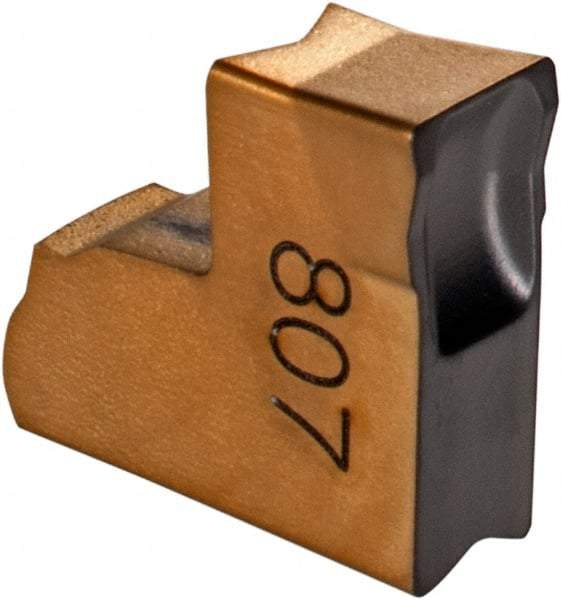

Iscar - TAGN3 C IC807 Grade, 0.12" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0079" Cnr Rad, TiN/TiAlN Coated, Single End
Item #: 93781078
Brand: Iscar
Model #: 6003625
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TAGN |
| Insert Size | 3 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.05 |
| Cutting Width (Decimal Inch) | 0.1200 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC807 |
| Coating | TiN/TiAlN |
| Series | Tang-Grip |
| Relief Angle | 7 |
| Chipbreaker | C |
| Full Radius | No |
| Multi-Use Application | Grooving; Slitting; Slotting |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Neutral |
| Insert Holding Method | Self Grip |
| Manufacturers Catalog Number | TAG N3C |
