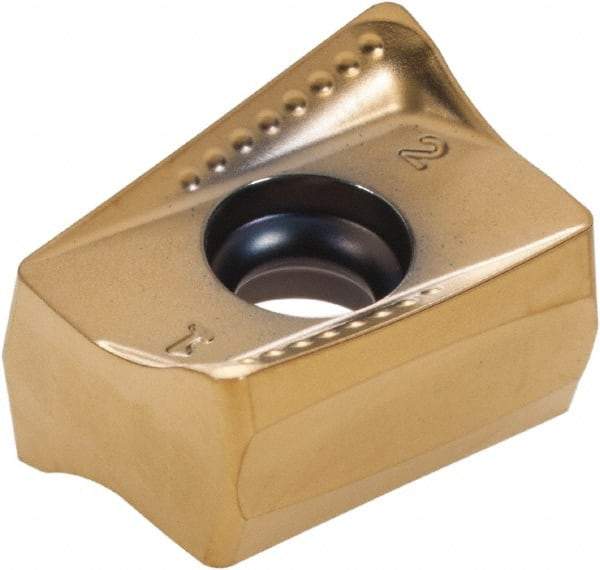

Ingersoll Cutting Tools - ANHU160708 Grade IN2505 Carbide Milling Insert - TiAlN/TiN Finish, 0.436" Thick, 0.031" Corner Radius
Item #: 93712685
Brand: Ingersoll Cutting Tools
Model #: 5840788
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ANHU |
| Insert Size | 160708 |
| Material | Carbide |
| Material Grade | C2 |
| Manufacturer's Grade | IN2505 |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.4360 |
| Length (Decimal Inch) | 0.6100 |
| Thickness (Decimal Inch) | 0.4360 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | ANHU160708R IN2505 |
