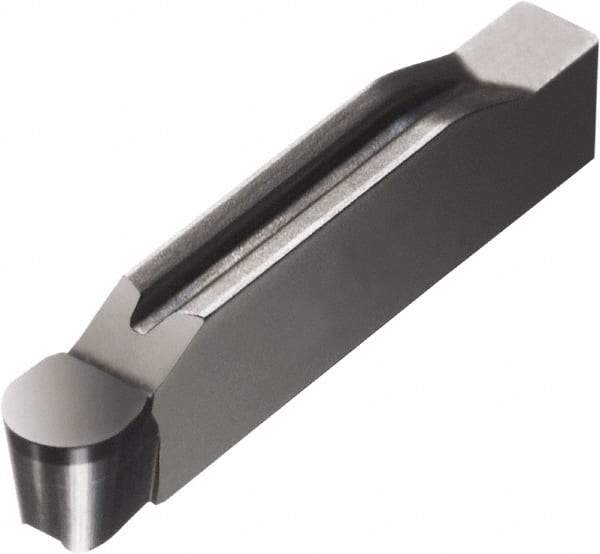

Sandvik Coromant - 0300N123 Grade CB20, 3mm Cutting Width CBN Grooving Insert - 0.6mm Max Depth of Cut, Neutral, 1.5mm Corner Radius, Uncoated
Item #: 93632297
Brand: Sandvik Coromant
Model #: 5736188
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | 0300 |
| Material | CBN |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 0.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.0236 |
| Manufacturer's Grade | CB20 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Overall Length (mm) | 20.05 |
| Overall Length (Decimal Inch) | 0.7894 |
| Series | CoroCut 1-2 |
| Manufacturers Catalog Number | 5736188 |
