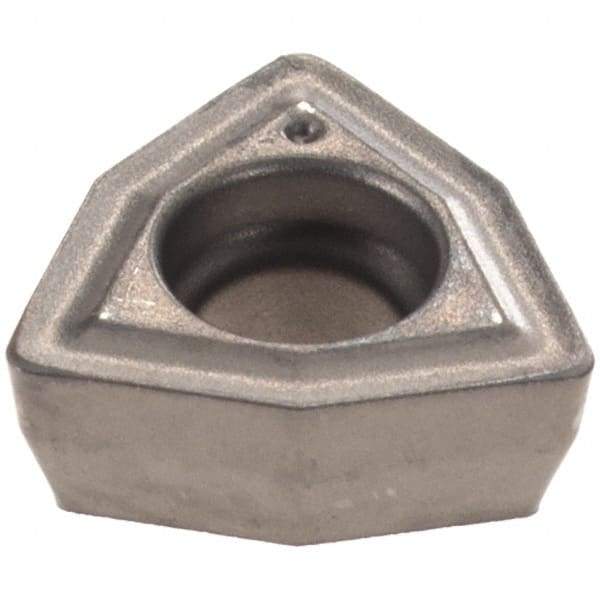

Komet - WOEX030204 01 Grade P40 Carbide Indexable Drill Insert - Uncoated, Trigon, 5mm Inscribed Circle
Item #: 93322147
Brand: Komet
Model #: W29100100404
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | WOEX |
| Insert Size | 030204 |
| Material | Carbide |
| Manufacturer's Grade | P40 |
| Inscribed Circle (mm) | 5.00 |
| Inscribed Circle (Decimal Inch) | 0.1969 |
| Thickness (mm) | 2.30 |
| Thickness (Decimal Inch) | 0.0906 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Trigon |
| Length (mm) | 3.20 |
| Length (Decimal Inch) | 0.1260 |
| Relief Angle | 8 |
| Included Angle | 84 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Chipbreaker | 01 |
