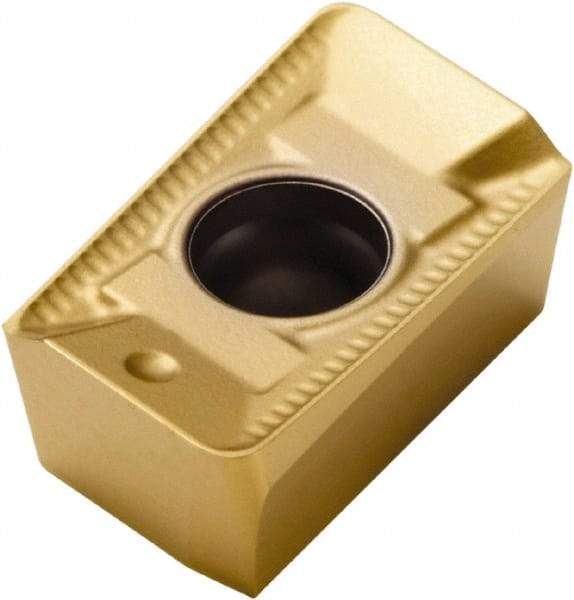

Seco - XCKX13T316 ME10 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.198" Thick, 1/16" Corner Radius
Item #: 93272722
Brand: Seco
Model #: 23999
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XCKX |
| Insert Size | 13T316 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.3120 |
| Length (Decimal Inch) | 0.5630 |
| Thickness (Decimal Inch) | 0.1980 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 7.000 |
| Rake Angle | 24 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | ME10 |
| ISO Number | XCKX13T316R-ME10 |
