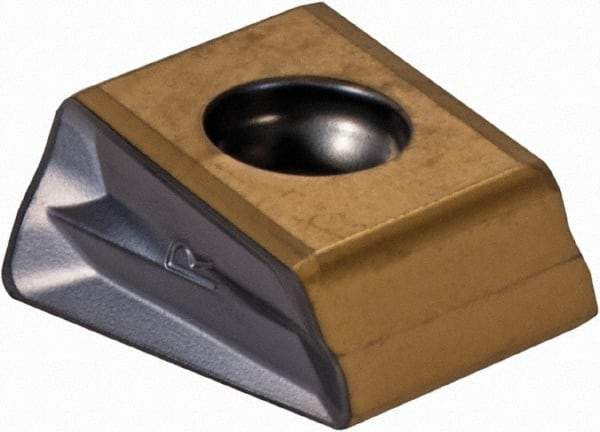

Iscar - T490 LNHT1306 PNTR Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.514" Thick, 0.79mm Corner Radius
Item #: 93040822
Brand: Iscar
Model #: 5606033
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNHT |
| Insert Size | 1306 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (Decimal Inch) | 0.2620 |
| Length (Decimal Inch) | 0.5430 |
| Thickness (Decimal Inch) | 0.5140 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Chipbreaker | PNTR |
| Maximum Depth of Cut (mm) | 12.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Manufacturers Catalog Number | T490 LNHT 1306PNTR |
