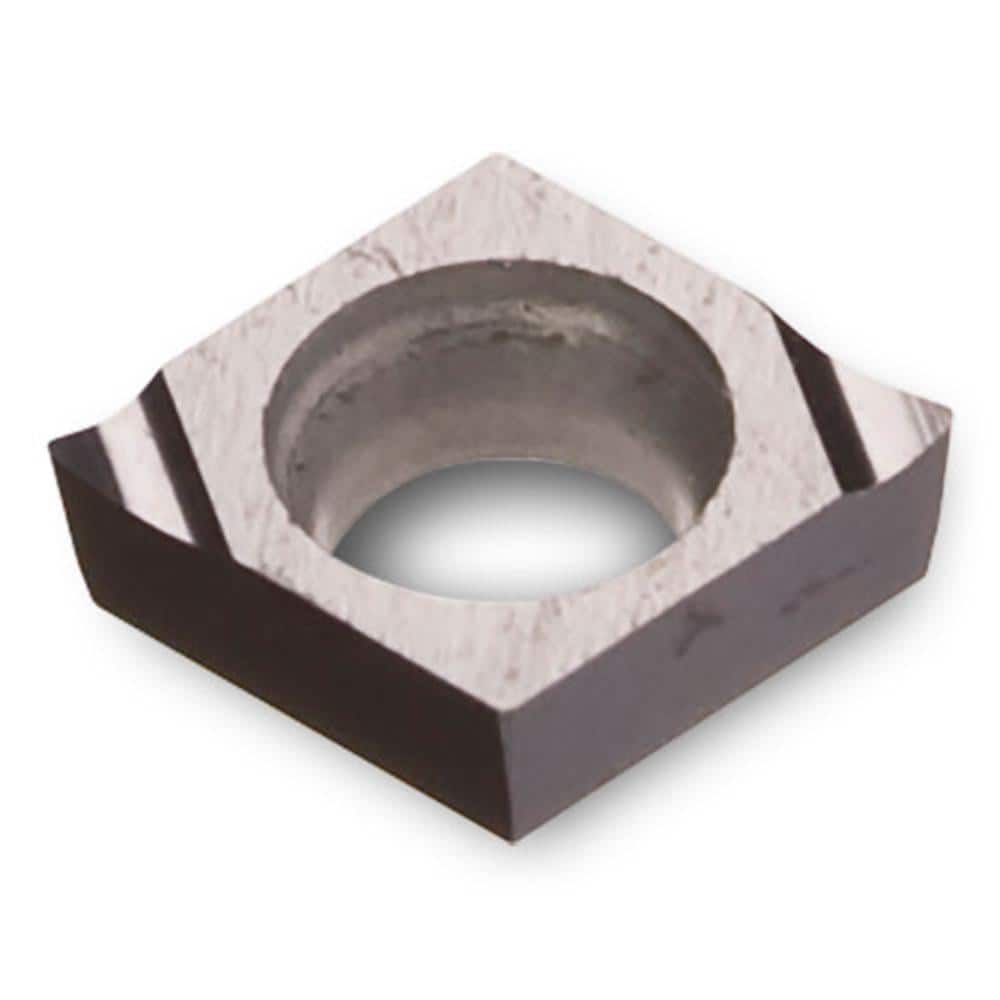

CCGT030102L-FF CT3000 Carbide Turning Insert 80° Diamond
Item #: 92873363
Brand: Ingersoll Cutting Tools
Model #: 5750084
Product Specifications
| Insert Style | CCGT |
| Insert Shape Code | C |
| Insert Size Code | 1.10.90.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CT3000 |
| Hole Diameter (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (Decimal Inch) | 0.0160 |
| Inscribed Circle (Decimal Inch) | 0.1380 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0550 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCGT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.1420 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | CCGT1.10.90.5LFFCT3000 |
| Iso Code | CCGT030102L-FF CT3000 |
| Chip Breaker | FF |
| Coating/Finish | Uncoated |
