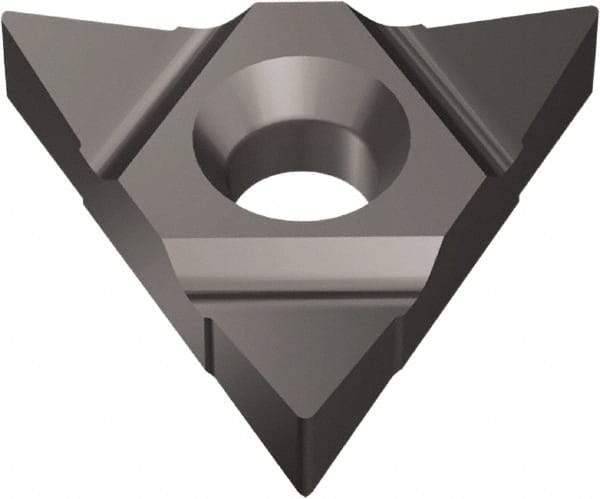

Vargus - 4-3 TPI, Internal Thread, Partial Profile 60° Standard, 4UI VTX Grade Thread Mill Insert - Carbide, TiAlN Coating
Item #: 92693928
Brand: Vargus
Model #: 50049
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | 4UI |
| Thread Type | Internal |
| Thread Standard | Partial Profile 60 Degrees |
| Threads Per Inch | 4-3 |
| Length (Decimal Inch) | 2.9921 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VTX |
| Material | Carbide |
| Coating | TiAlN |
| Coating Process | PVD |
| Inscribed Circle (mm) | 12.70 |
