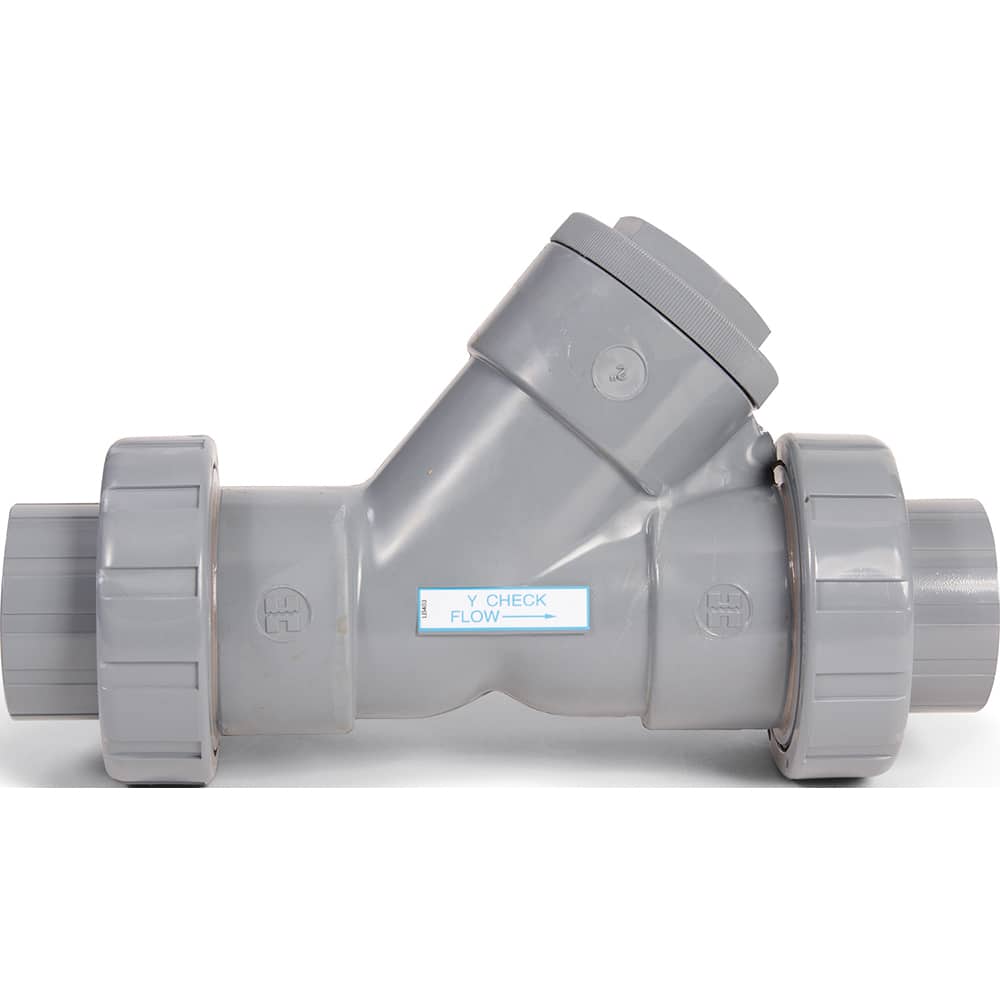

Hayward - Check Valves; Design: Y-Pattern; True Union Ball Check ; Tube Outside Diameter (mm): 25.400 ; Pipe Size (Inch): 1 ; Tube Outside Diameter (Inch): 1 ; End Connections: Socket ; Material: CPVC
Item #: 92662410
Brand: Hayward
Model #: YC20100SU
Product Specifications
Check Valves; Design: Y-Pattern; True Union Ball Check ; Tube Outside Diameter (mm): 25.400 ; Pipe Size (Inch): 1 ; Tube Outside Diameter (Inch): 1 ; End Connections: Socket ; Material: CPVC
| Design | Y-Pattern; True Union Ball Check |
| Tube Outside Diameter (mm) | 25.400 |
| Pipe Size (Inch) | 1 |
| Tube Outside Diameter (Inch) | 1 |
| End Connections | Socket |
| Material | CPVC |
| Seal Material | FPM |
| Material Grade | ASTM D1784 Cell Class 23447 |
| Crack Pressure (psi) | 1 |
| Maximum Temperature (F) | 190.000 |
| Minimum Temperature (F) | 40.000 |
| Overall Length (Decimal Inch) | 8.96880 |
| Maximum Working Pressure (psi) | 150.000 |
