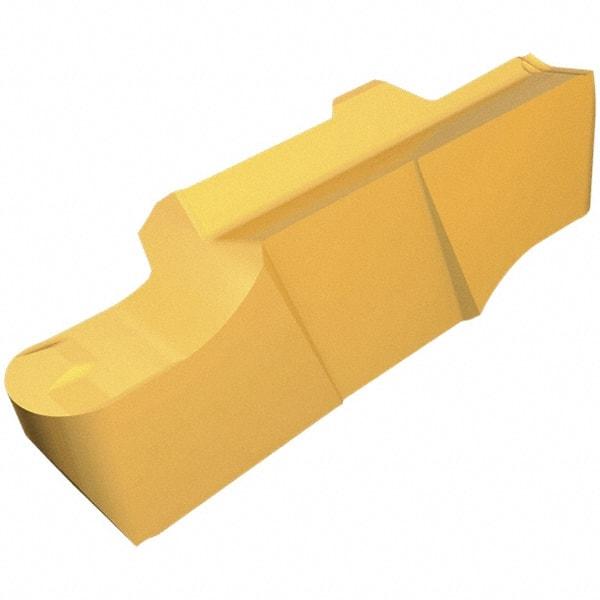

Iscar - 23902GIPI X Grade IC808, 2.39mm Cutting Width Carbide Grooving Insert - 3.9mm Max Depth of Cut, Left Hand, 0.2mm Corner Radius, TiAlN Finish
Item #: 92536325
Brand: Iscar
Model #: 6404144
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPI |
| Insert Size | 23902 |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (mm) | 3.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.1535 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Relief Angle | 8 |
| Chipbreaker | X |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.6180 |
| Series | Cut Grip |
