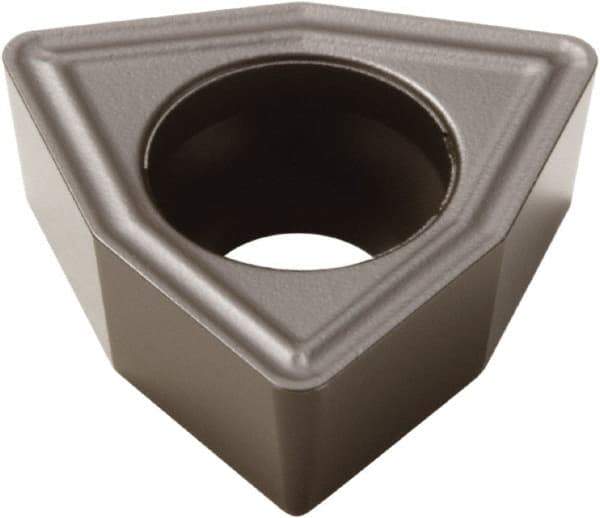

Seco - WCMX030208 86 Grade DP2000 Carbide Indexable Drill Insert - TiCN/Al2O3 Finish, Trigon, 0.218" Inscribed Circle
Item #: 92501212
Brand: Seco
Model #: 90250
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 030208 |
| Material | Carbide |
| Material Grade | C6 |
| Manufacturer's Grade | DP2000 |
| Inscribed Circle (Decimal Inch) | 0.2180 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.031 |
| Shape | Trigon |
| Width (Decimal Inch) | 0.2180 |
| Length (Decimal Inch) | 0.2180 |
| Relief Angle | 7 |
| Included Angle | 80 |
| Coating | TiCN/Al2O3 |
| Coating Process | Duratomic |
| Chipbreaker | 86 |
