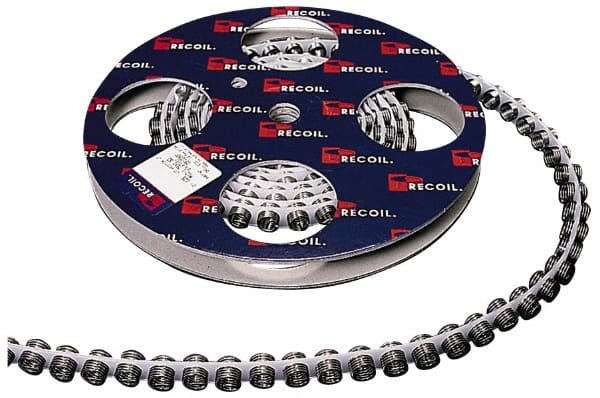

Recoil - Screw-Locking Inserts; Thread Size: M5x0.80 ; Overall Insert Length (mm): 7.50 ; Tang: Yes ; Tang: Tangless ; Length to Diameter Ratio: 1-1/2D ; Length to Diameter Ratio: 1-1/2D
Item #: 91906586
Brand: Recoil
Model #: 15053MADSF
Product Specifications
Screw-Locking Inserts; Thread Size: M5x0.80 ; Overall Insert Length (mm): 7.50 ; Tang: Yes ; Tang: Tangless ; Length to Diameter Ratio: 1-1/2D ; Length to Diameter Ratio: 1-1/2D
| Thread Size | M5x0.80 |
| Overall Insert Length (mm) | 7.50 |
| Tang | Yes |
| Tang | Tangless |
| Length to Diameter Ratio | 1-1/2D |
| Number of Inserts | 500 |
| Minimum Outside Diameter (mm) | 6.25 |
| Maximum Outside Diameter (mm) | 6.80 |
| Finish/Coating | Dry Film Lubricant |
| Number of Free Coils | 6-7/8 |
| Maximum Locking Torque (N/m) | 1.60 |
| Minimum Break Away Torque (N/m) | 0.3000 |
| Thread Standard | Metric Coarse |
