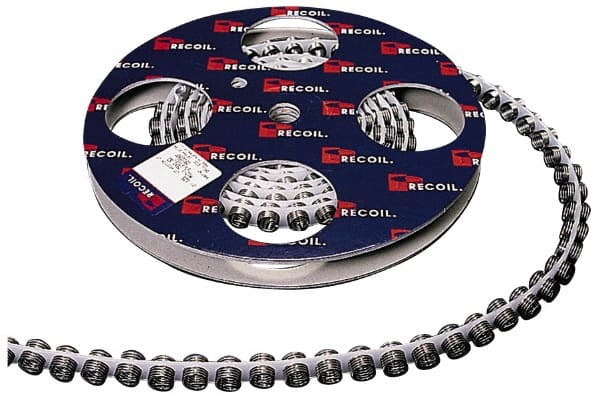

Recoil - Screw-Locking Inserts; Thread Size: 5/16-18 ; Overall Insert Length (Decimal Inch): 0.4690 ; Tang: Yes ; Tang: Tangless ; Length to Diameter Ratio: 1-1/2D ; Length to Diameter Ratio: 1-1/2D
Item #: 91905893
Brand: Recoil
Model #: 13053SF
Product Specifications
Screw-Locking Inserts; Thread Size: 5/16-18 ; Overall Insert Length (Decimal Inch): 0.4690 ; Tang: Yes ; Tang: Tangless ; Length to Diameter Ratio: 1-1/2D ; Length to Diameter Ratio: 1-1/2D
| Thread Size | 5/16-18 |
| Overall Insert Length (Decimal Inch) | 0.4690 |
| Tang | Yes |
| Tang | Tangless |
| Length to Diameter Ratio | 1-1/2D |
| Number of Inserts | 250 |
| Minimum Outside Diameter (Decimal Inch) | 0.3800 |
| Maximum Outside Diameter (Decimal Inch) | 0.4000 |
| Number of Free Coils | 6-5/8 |
| Maximum Locking Torque (In/Lb) | 60 |
| Minimum Break Away Torque (In/Lb) | 7.50 |
| Thread Standard | UNC |
