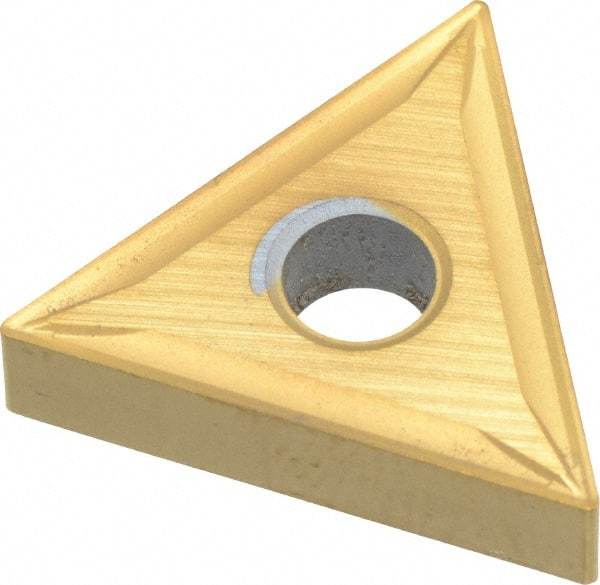

Hertel - TNMG431 F Grade HC210 Carbide Turning Insert - TiN Finish, 60° Triangle, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 91788257
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 431 |
| Material | Carbide |
| Length (Decimal Inch) | 0.8660 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | HC210 |
| Coating | TiN |
| Material Grade | C2/C4 |
| Chip Breaker | F |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | N; S; M |
| Secondary Workpiece Material | K |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
