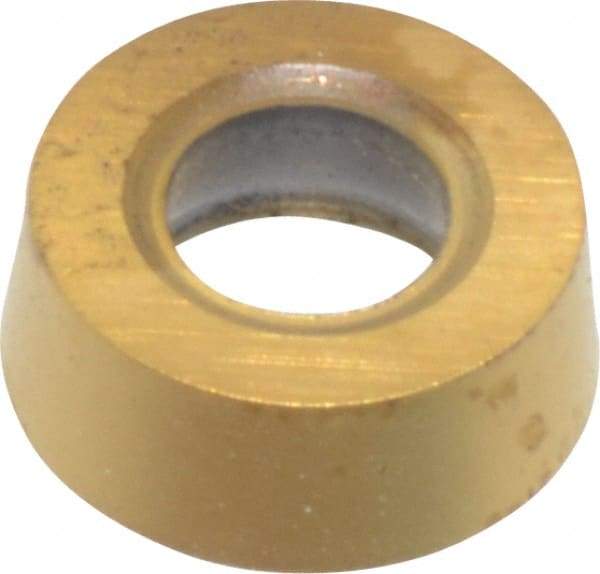

Hertel - RCMT21.50 Grade HC210 Carbide Turning Insert - TiN Finish, Round, 1/4" Inscr Circle, 3/32" Thick
Item #: 91787291
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 21.50 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | HC210 |
| Coating | TiN |
| Material Grade | C2/C4 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Primary Workpiece Material | N; S; M |
| Secondary Workpiece Material | K |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Round |
