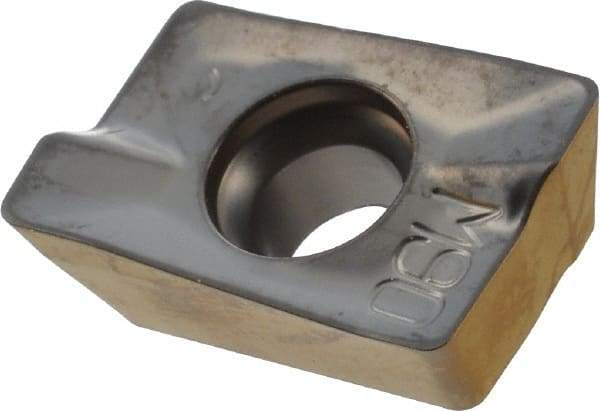

Iscar - HM90 ADKT1505 Grade IC380 Carbide Milling Insert - TiCN/TiN Finish, 0.2303" Thick, 0.8mm Corner Radius
Item #: 91770875
Brand: Iscar
Model #: 5602992
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 ADKT |
| Insert Size | 1505 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC380 |
| Coating | TiCN/TiN |
| Width (Decimal Inch) | 0.3800 |
| Length (Decimal Inch) | 0.6370 |
| Thickness (Decimal Inch) | 0.2303 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Rake Angle | 18 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 14.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.5710 |
| ISO Number | HM90 ADKT 1505-PDR |
