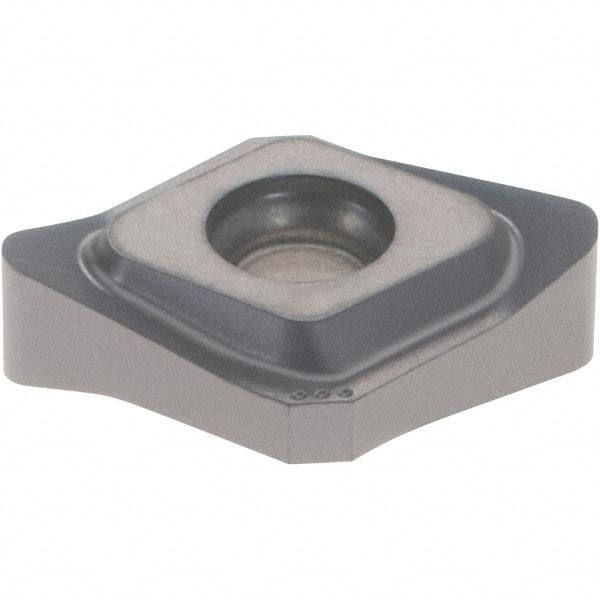

Iscar - ENHT100415 Grade IC908 Carbide Milling Insert - TiAlN Finish, 0.1654" Thick, 0.4134" Inscribed Circle, 1.5mm Corner Radius
Item #: 91703199
Brand: Iscar
Model #: 5604535
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ENHT |
| Insert Size | 100415 |
| Material | Carbide |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.4134 |
| Thickness (Decimal Inch) | 0.1654 |
| Corner Radius (Decimal Inch) | 0.0590 |
| Corner Radius (mm) | 1.50 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 75 |
| Shape | Diamond |
| Maximum Depth of Cut (mm) | 1.50 |
| ISO Number | ENHT 100415 |
