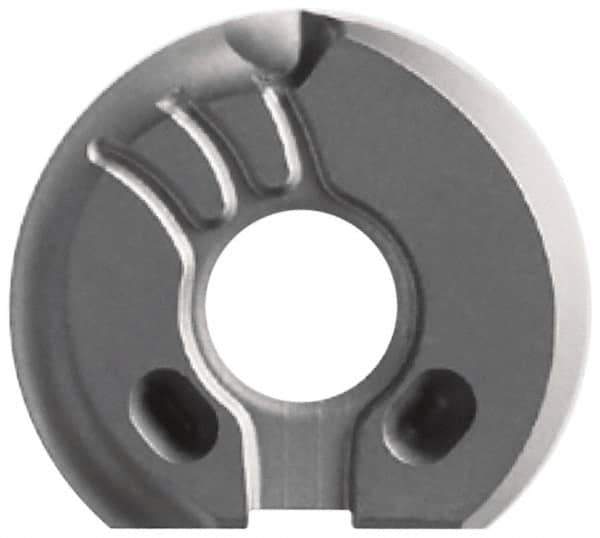

LMT - WPR0625 AR Grade LC630Q Carbide Milling Insert - AlCrN Finish, 0.118" Thick, 5/8" Inscribed Circle, 5/16" Corner Radius
Item #: 91627695
Brand: LMT
Model #: 12944
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPR |
| Insert Size | 0625 |
| Material | Carbide |
| Manufacturer's Grade | LC630Q |
| Coating | AlCrN |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.1180 |
| Corner Radius (Inch) | 5/16 |
| Corner Radius (Decimal Inch) | 0.3125 |
| Corner Radius (mm) | 7.94 |
| Hole Diameter (mm) | 5.00 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Relief Angle | 12.000 |
| Coating Process | PVD |
| Shape | Ball Nose Rounded Tip |
| Insert Hand | Right Hand |
| Chipbreaker | AR |
