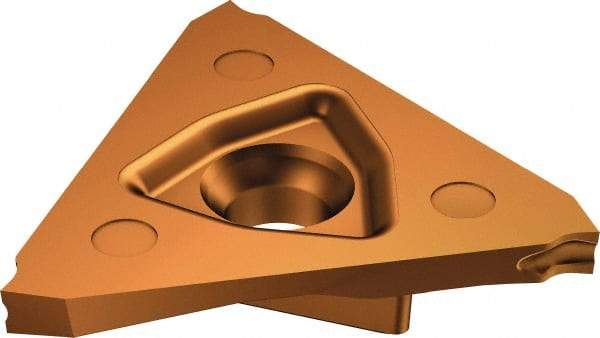

Sandvik Coromant - N123U3U CM 1125 Grade, 0.0394" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.0039" Cnr Rad, TiAlN Coated
Item #: 91481267
Brand: Sandvik Coromant
Model #: 5737313
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | N123U3 |
| Insert Size | U |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Series | CoroCut 3 |
| Relief Angle | 7 |
| Chipbreaker | CM |
| Maximum Depth of Cut (mm) | 4.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.1693 |
| Full Radius | No |
| Multi-Use Application | Grooving; Parting; Profiling |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Seat Size | U |
| Width Tolerance | ±0.001 (Inch) |
| Manufacturers Catalog Number | 5737313 |
