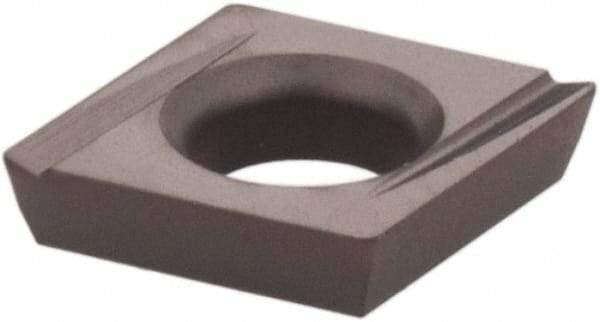

Kennametal - CDHH1.20.60.5 Grade KCU25 Carbide Turning Insert - AlTiN Finish, 80° Diamond, 5/32" Inscr Circle, 0.04 Thick, 0.007" Corner Radius
Item #: 91418814
Brand: Kennametal
Model #: 4050611
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CDHH |
| Insert Size | 1.20.60.5 |
| Material | Carbide |
| Length (mm) | 4.03 |
| Length (Decimal Inch) | 0.1587 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.0400 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Hole Diameter (mm) | 2.13 |
| Hole Diameter (Decimal Inch) | 0.0840 |
| ISO Number | CDHHS4T002L |
| Relief Angle | 15 |
| Coating Process | PVD |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | Screw-On |
| Insert Holding Method | Screw |
| Shape | Diamond |
