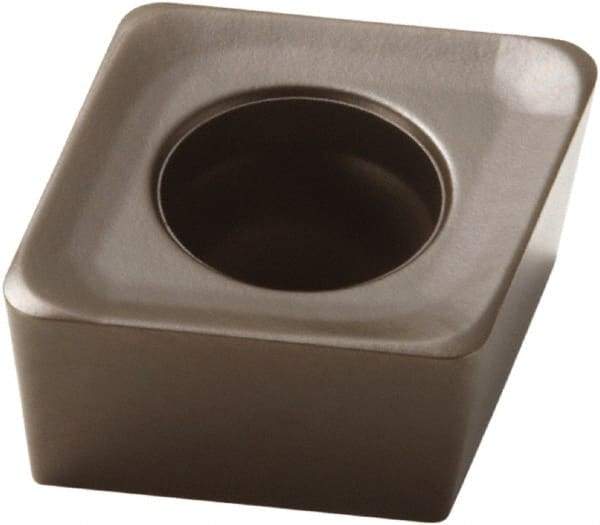

Seco - CCMX08T308 M08 Grade T350M Carbide Milling Insert - TiCN/Al2O3 Finish, 0.173" Thick, 0.316" Inscribed Circle, 0.031" Corner Radius
Item #: 91367565
Brand: Seco
Model #: 23943
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMX |
| Insert Size | 08T308 |
| Material | Carbide |
| Manufacturer's Grade | T350M |
| Coating | TiCN/Al2O3 |
| Length (Decimal Inch) | 0.3160 |
| Inscribed Circle (Decimal Inch) | 0.3160 |
| Thickness (Decimal Inch) | 0.1730 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 7.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | CVD |
| Included Angle | 80 |
| Shape | Diamond |
| Chipbreaker | M08 |
| ISO Number | CCMX08T38T-M08 |
