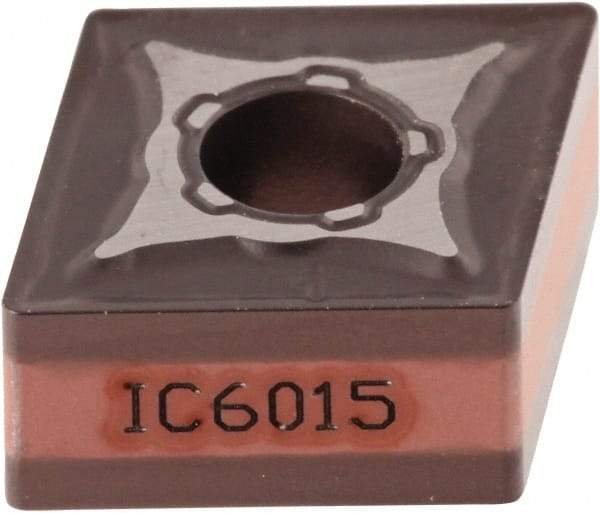

Iscar - CNMG331 M3M Grade IC6015 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 91315341
Brand: Iscar
Model #: 5510330
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 331 |
| Material | Carbide |
| Length (mm) | 9.68 |
| Length (Decimal Inch) | 0.3810 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | IC6015 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | M3M |
| Insert Length (Decimal Inch) | 0.3810 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | CNMG 331-M3M |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | CVD |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Holding Method | Pin & Clamp |
| FullRadius | No |
| Multi Use Application | Facing |
| MultiUseTool | Yes |
| Shape | Diamond |
