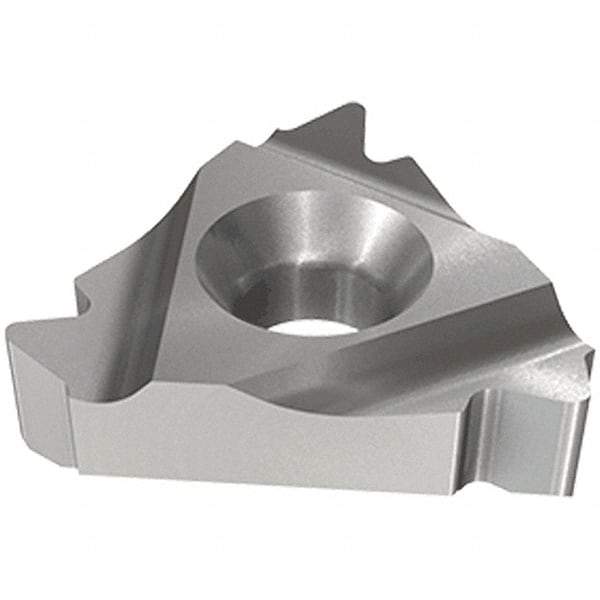

Iscar - 16IL Internal Left Hand 8 API Round Laydown Threading Insert - Grade IC250, TiCN/TiN Coated Carbide, 9.53mm Inscribed Circle
Item #: 91171199
Brand: Iscar
Model #: 5996676
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16IL |
| Insert Hand | Left Hand |
| Thread Type | Internal |
| Thread Standard | API Round |
| Manufacturer's Grade | IC250 |
| Threads Per Inch | 8 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1430 |
| Coating | TiCN/TiN |
| Coating Process | PVD |
