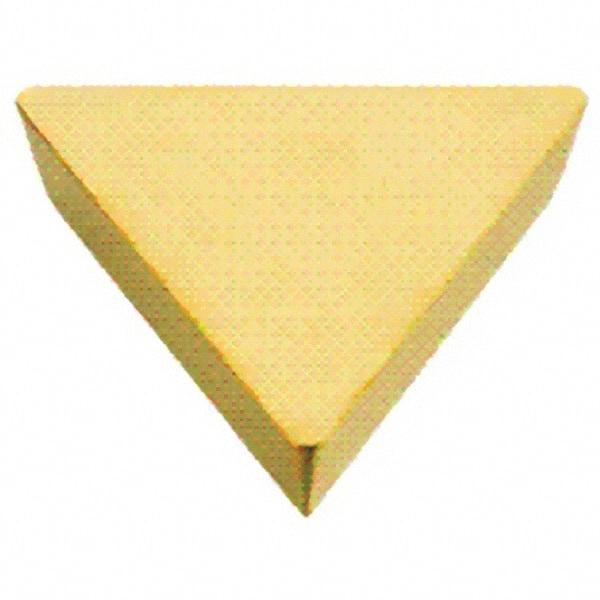

Iscar - TPU321 Grade IC9054 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 1/8" Thick, 0.3748" Inscribed Circle, 0.4mm Corner Radius
Item #: 91170472
Brand: Iscar
Model #: 5507596
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPU |
| Insert Size | 321 |
| Material | Carbide |
| Manufacturer's Grade | IC9054 |
| Coating | TiCN/Al2O3/TiN |
| Length (Decimal Inch) | 0.6300 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Coating Process | CVD |
| Included Angle | 60 |
| Shape | Triangle |
| Manufacturers Catalog Number | TPU 321 |
